 Level Float Switch for Retention Receiver CF30 Series

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Level Float Switch for Retention Receiver CF30 Series

Against the liquid height, the float lift up a stem actuating a change-over contact. The fitting allows installation on almost any day-tank or retention receiver. The stem length may be modified on request. Several versions are available depending on detection heights and mounting:

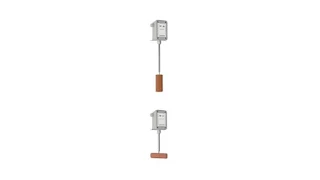

CF30 Model:

The float is mounted vertically to reduce dimensions. Distance H: Min. 150 mm Distance H: Max. 950 mm Detection from 100 mm of liquid as a minimum (depending of H).

CF31 Model:

The float is mounted horizontally for a detection as soon as possible. Distance H: Min. 150 mm Distance H: Max. 2000 mm Detection from 20 mm of liquid as a minimum (depending of H).

CF32 Model:

Similar to CF30, but with BSP 2'' fitting

Features

• For retention receiver and gutter
• Stem length: from 150 to 2000 mm
• Easy installation
• Output: contact, potential free
• Head housing: IP 54

Application

The float switch CF30 and its variants, are designed to detect a leak from the main tank falling into the retention receiver. Compatibility with liquids (examples):

• Diesel
• Lubricating oil
• Rainwater
• Water-glycol mixture

As it is a simple controller, much more applications are available.

Specification

Materials	Stem: Stainless steel
	Float: Foamed PVC
Head housing	IP 54
Operating pressure	Atmospheric
Operating temperature	Between 0 and 40 °C
Contact(s)	1 changeover contact, 4 A, 230 V, potential-free
	Factory setting

Download Data Sheet: Level Float Switch for Retention Receiver CF30 Series
