Paddlewheel Flow Sensor

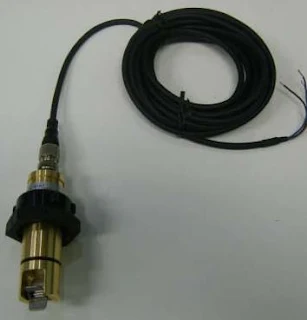

The FLSTRONIC Rota Paddlewheel Flow Sensor(FPH8) Insertion Type Flow meters use a proven principle of flow measurements which are used worldwide.
Applications are suitable for a wide range of liquid flow measurement, monitoring and batching applications.

 PRODUCT FEATURES
■ Accuracy:  ± 1.0%
■ Repeatability:  ± 0.6%
■ Temperature: 50℃ or 120℃
■ NPN  inductive pulse with internal
amplification.
■ Square wave output with short circuit
protection.
■ Inductive coil pulse option.
■ Simple installation and maintenance.
■ Large range of pipe adaptor fittings in size 15
to 150mm.





GENERAL SPEICIFICATION
F-PH8-PF-PH8-HF-PH8-L
Body MaterialDelraon (Acetal)BrassDelron
O-ring x2NeopreneVitonNeoprene
Rotor/ Bushes/ AxleMarine grade alloy / Deltron / Tungsten Carbide
LockcapPVDFBrassPVDF
Power Supply Voltage5-30VDC5-30VDCInduct coil 260 ohms.
Ouput signalNPN open collector
50% duty cycle pulse
NPN open collector
50% duty cycle pulse
NPN open collector
50% duty cycle pulse
0.1v to2v p/p generated
Cable length3meters, plug-in cable
3-core (3-wire)
2meters, plug-in cable
2-core (3-wire)
2meters, plug-in cable
2-core (3-wire)
Temperature/Pressure50℃ / 200psi120℃ / 400psi120℃ / 410psi
Weather ratingIP68IP65IP65
Accuracy±2.5 % for 0.5 to 8.5m/s, ±1% for 0.7 to 7.0m/s, Repeatability ± 0.6%
For Pipe Size15 to 150mm standard, larger pipes via BSPB special adaptor.
