Low-Cost Flowmeter (for Immediate Delivery)
MODEL RK1700 SERIES

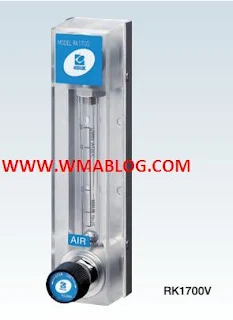

Model RK1700 Series
Flowmeter centers the focus on cost reduction using SUS 316 as the material of
construction. This flowmeter covers flow ranges from 1 l/min to 50 l/min and
can be shipped in one week after the customer's purchase order.
Features
-Very reduced
price
-One-week
delivery
-Compact design
Applications
-Operating
temperature is 20°C (at atmospheric pressure).
-The needle is
located at the bottom. (Standard specification)
-Supply pressure,
standard: 0.1 MPa to 0.3 Mpa
Standard
Specifications
- Flow range (Full
scale) : 1L, 5L, 10L, 30L, 50L/MIN (AT20°C)
- Fluids : Use for
Air, N2 and O2 exclusively
- Accuracy : FS±7%
- Available scale :
10:1
- Proof pressure :
0.5Mpa
- Materials :
SS : SUS 316, Pyrex, FKM, SUS 304, SUS 303, glass
BS: Brass, Pyrex, NBR,
SUS303, glass
- Temperature
Resistance : MAX. 60°C
