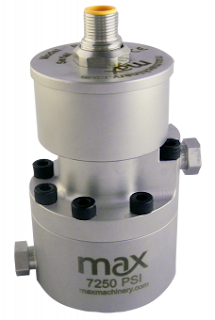

Piston Flow Meter P001 MAX



P001 Series Piston Flow Meter termasuk dalam kategori positive displacement flow meter dengan Piston yang dikeluarkan oleh Max Machinery, Inc. (“MMI”) dari USA.
Baca juga: Jenis positive displacement flow meter

Application

  • Odorant Injection Measurement
  • Aviation Hydraulic Testing
  • Hot Melt Adhesive Dispensing Applications Measured to a Fraction of a Gram
  • Valve Leak Testing
  • Chemical Additives Injection Measurement
  • Diesel Exhaust Fluid (AdBlue) Measurement

Specification

Flow Range0.005 to 200 cc/min0 to 0.053 gpm
Accuracy (at 30 cP)± 0.2% of reading over a 200:1 range, or
±2mV (or4μA),whichever is greater
Maximum Operating Pressure7250 psi500 bar
Weight1.1 kg(2.4 lbs)
Recommended Filtration5 micron
Port Size(s)1/4" or 6mm tube fitting
FluidsMost non-aqueous, hydrocarbon based liquids

Material Of Contruction

ExternalStainless steel, type 316
WettedStainless steel, type 316, 440C; Silicon Nitride; Nickel based carbide
O-RingsStandard: Viton®
Optional: Perfluoroelastomer

Transmitter

Signal TypeOutputResolution (K-Factor)Std. Temp†High Temp†Ultra Temp
Frequency5 VDC square wave (current sinking available)12,000 pulses/L90°C155°C225°C
Frequency5 VDC quadrature (2-phase)
6,000 pulses/L/phase
90°C155°C225°C
Analog
0-10 VDC
Uni or Bi-directional90°C155°C225°C
Analog
4-20 mA
Uni or Bi-directional90°C155°C225°C
Compliance:
CE Certified, Ex-proof version available with ATEX/IECEx II 2 G Ex db IIB Tx Gb as well as UL, cUL certification for Class 1, Division 1, Groups C and D, Tx. †Maximum temperature rating for ATEX certified transmitters is 75°C Std. Temp and 130°C High Temp.

Typical Pressure Drop Piston Flow Meter

Dimension Piston Flow Meter P001

Visit Wiratama-ma for more info and price or
