Bamo Pneumatically Actuated 2-Way Ball Valves VP2V S4 Series

 Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.



Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

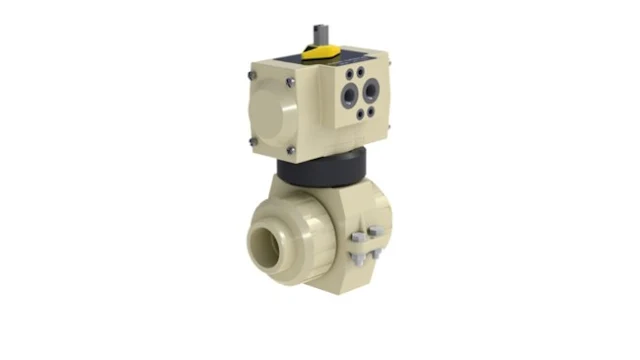

Pneumatically Actuated 2-Way Ball Valves VP2V S4

Pneumatically actuated 2-way ball valves VP2V S4 are useful to allow or to stop the flow of liquids in piping systems. These valves are suitable for applications even with aggressive liquids.

Features

• PVC Valves from ND 10 up to ND 100
• Pneumatic actuator
  • Single or double acting
• Position pointer
• OPTIONS:
  • Limit switches box
  • Pilot valve
• Accessories:
  • Limit switches box
  • 3/2-way pilot valve (For single acting versions)
  • 5/2-way pilot valve (For double acting version)

Another Article: Bamo Needle Valve A 32 VS26 Series Norgren Valve Manifolds Kobold Manifold Valves for Multiple Installation Kobold Level Meter and Valve Pressure Relief Valves SPV, SPVF Series Kracht

Specification

Body	PVC	PPH	PVDF
Seals	EPDM or FPM		FPM
Ball	PVC	PPH	PVDF
Ball seat	PTFE
Fittings	Unions , socked ends for solvent   welding	Unions (solvent   sockets)
Pressure limits	ND 10 to ND 50: 10 bar	5 bar (ND 80...100), 6   bar (ND 65),
	ND 65 to ND 100: 6 bar	10 bar (DN 10...50),   as maxima

Pneumatic actuator:

Models	Single acting (or N.O.   or N.C.) version, or, double acting
Operating pressure	6 bar min., 8 bar max.	6 bar as a maximum
Fittings	BSP ¼'' female	1/4” G

Download Data Sheet:

• Pneumatically Actuated 2-Way Ball Valves VP2V S4-PVC
• Pneumatically Actuated 2-Way Ball Valves VP2V S4-PPH
• Pneumatically Actuated 2-Way Ball Valves VP2V S4-PVDF
