MPM4780W, Microsensorcorp-Level Transmitter

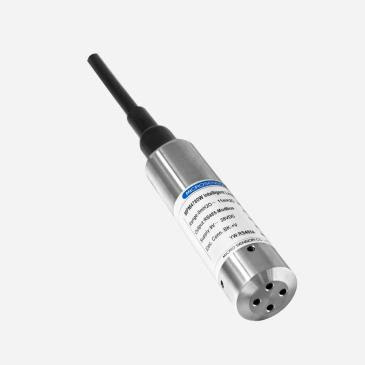

MPM4780W, Microsensorcorp-Level Transmitter[/caption]

MPM4780W Intelligent Level Transmitter is a highly integrated measurement product with high stability. It uses an intelligent processing circuit, the most advanced design, and manufacturing technology of the piezoresistive pressure transmitter, and is available for pressure signal and temperature signal output that in accordance with standard MODBUS-RTU protocol. Featuring integrated design, standard digital output, great compatibility, small size, high accuracy, lightweight, and wide pressure range, it can be applied in many fields that involve high accuracy required measurement of fluids. It also can take replace of level transmitters in the form of MODBUS-RTU protocol output by providing level type measurement for users

Features

• RS485 communication interface, Standard MODBUS-RTU Protocol output
• Netting available
• Short circuit protection and reverse polarity protection
• Full stainless steel construction, compact size, lightweight
• Good output consistency and replaceability
• Available for calibration and parameter change on-site through matched software of computer

Assistant Software

MPM4780 Transmitter Software

RS232/485 Conversion module is used to communicate with the RS485 interface transmitter, available for real-time pressure/temperature display and calibration on site.

Some parameters calibration was done before being transported to the factory, so users do not have to modify them. When mistaken operations happen, users can push “Back to Factory Setting” to turn it to a factory setting. Besides, the software keeps the Data Record section, which allows users to set the recording interval freely for recording and saving data, and the data can be saved in the forms of “*.Excel”.

Communication Connector

Function	Inner plug pin color	Outer Electrical Connection
		Wire Color
+V	1 (Black)	Black
-V	2 (Red)	Red
RS485B	4 (White)	White
RS485A	5 (Yellow)	Yellow



Another Article: Bamo Level Controller with Stop Valve VALFO TE CD1050 Dynamic Rotary Torquemeter KOMAX TRIPLE ACTION STATIC MIXER SXL BEARINGS AND SEALS Flexible Metal Hose HELS

Specifications

Range	0m~3.5m…200mH2O
Overpressure	1.5 times FS / 1100bar (min. value is valid)
Pressure type	Gauge/ Absolute/ Sealed gauge
Power Supply	9V~28V DC
Output signal	RS485 Interface(MODBUS-RTU protocol)
Accuracy	±0.5%FS
Thermal drift	±0.04%FS/℃ (≤1bar); ±0.03%FS/℃ (>1bar)
Measurement Error	±2℃ (For “temperature & pressure type” only)
Application Temp.	-10℃ ~70℃
Storage Temp.	-20℃ ~85℃
Insulation	100V, 100M
Stability	±0.3%FS/YEAR
Shock	20g, 25Hz~2000Hz
Impact	100g, 11ms
Protection	IP68
Weight	~250g;
Housing	Stainless steel 304
Diaphragm	Stainless steel 316L
O- Ring	Viton

Ref: microsensorcorp.com

Download Datasheet: MPM4780W, Microsensor Level Transmitter
