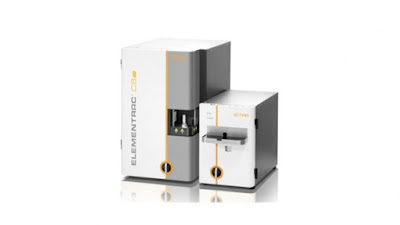

ELTRA's ELEMENTRAC CS-d is the only analyzer in the market for the determination of carbon and sulfur in organic as well as inorganic samples. For this purpose, the ELEMENTRAC CS-d is equipped with both an induction and a resistance furnace (ELTRA Dual Furnace Technology), covering the full range of carbon and sulfur analysis.
Up to four highly sensitive infrared (IR) cells allow for precise measurement of both high and low carbon and sulfur concentrations in only one analysis. The measuring range of each cell may be adapted to the user's specific requirements to ensure optimum measurement conditions for each application. The ELEMENTRAC CS-d is supplied with the comprehensive and user-friendly ELEMENTS software which features statistics, groupings, reports, diagnosis tools, and many additional functions.
Advantages
General:
- Full flexibility due to combined induction and resistance furnace: ELTRA Dual Furnace (EDF) Technology
- Rapid, precise, accurate, and reliable carbon & sulfur analysis in inorganic and organic samples
- Up to four independent infrared cells with flexible measuring ranges
- Gold IR path allows for increased cell live time for analysis of halogen or acid-containing samples
- Simultaneous carbon and sulfur determination with minimal sample preparation
- Low maintenance
- The robust design allows usage in production control and laboratory
Induction Furnace:
- Adjustable and ramp-able induction furnace (0-100%) for optimized combustion of every kind of inorganic samples (maximum temperature above 2,000 °C)
- Precise carbon and sulfur analysis in inorganic samples due to intelligent oxygen supply during inductive combustion
- Optional automatic vacuum cleaning system ensures higher measurement precision
- Heated and easily accessible dust-trap allows for improved sulfur detection
- Optimized catalyst reactor permits more accurate carbon detection
Resistance Furnace:
- The temperature of the resistance furnace adjustable from 600 °C up to 1,550 °C in steps of 1 °C
- Low blank sample port assures reliable low carbon measurement in the resistance furnace
- XXL balcony for storage of samples
ELEMENTS software:
- Comprehensive analysis and diagnosis tools (supporting data and application export, comment fields, and many more)
- Report Designer
- LIMS
- Single and multi-point calibration
Application
Alloys, ashes, carbides, cast iron, cement, ceramics, coal, coke, copper, glass, gypsum, iron, limestone, metals, minerals, oil, ores, plant materials, refractory metals, rubber, sand, soils, steel, titanium, tobacco, etc.
Another Article: |
Specification
Measured elements | carbon, sulfur |
Samples | inorganic, organic |
Furnace alignment | horizontal (resistance furnace) and vertical (induction furnace) |
Sample carrier | ceramic boats / crucibles |
Field of application | agriculture, chemistry / plastics, coal / power plant, construction materials, engineering / electronics, environment / recycling, geology / mining, glass / ceramics, medicine / pharmaceuticals, steel / metallurgy |
Furnaces | induction furnace, above 2,000 °C |
resistance furnace (ceramic tube), adjustable up to 1,550 °C (steps of 1 °C) | |
Detection method | solid state infrared absorption |
Number of IR cells | 4-Jan |
The material of IR path | gold |
Typical analysis time | induction furnace 40 - 50 s |
resistance furnace 60 - 120 s | |
Chemicals required | magnesium perchlorate, platinized silica (alternatively copper oxide), sodium hydroxide |
Gas required | compressed air (4 - 6 bar / 60 - 90 psi) |
oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi) | |
Power requirements induction furnace | 230 V, 50/60 Hz, 16 A fuse |
Power requirements resistance furnace | 230 V, 50/60 Hz, 20 A fuse |
Dimensions (W x H x D) | 89 x 84 x 79 cm |
Weight | ~ 200 kg |
Required equipment | balance (resolution 0.0001g), monitor, PC |
Optional accessories | Autoloader for 36 crucibles, carrier gas purification, HTF-540 pre-heating furnace |
Download Data Sheet: Carbon/Sulfur Analyzer ELEMENTRAC CS-d
Ref: eltra.com
