Bamo Flow Transmitter for IDP-A Z60 / IDP-A



Bamo Flow Transmitter for IDP-A Z60 / IDP-A


Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Flow Transmitter for IDP-A Z60 / IDP-A

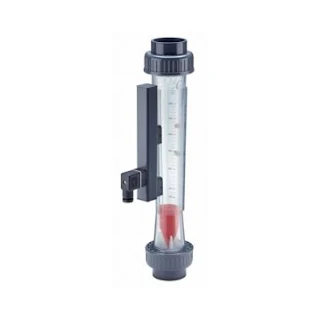

The flow transmitter Z60 is designed for IDP-A (with magnet diver) 730... series. It converts the float position into a 4-20 mA signal. The transmitter does not require any adjustment on site. Each model is specific to a measuring scale of IDP-A.

Mandatory:

The flow indicator must integrate a magnetic diver (IDP-A series only).

Installation:

The transmitter is fixed directly to the flow indicator.

Caution:

- Output signal 4 mA corresponds to 10% of full scale; Exception⛶on⛶IDP-A⛶8000:⛶13⛶%).
- Output signal 20 mA corresponds to 100% of full scale.

Features:

  • Flow-rate transmitter
  • For IDP-A, with magnetic diver
  • Output signal: 4-20 mA (3-wire)
  • Already set in factory
  • Plug in connector

Application:

For remote indication of flow-rate as indicated by the diver of IDP-A.

Another Article:

Specification:

Power supply12 ... 24 V DC (± 10%)
Consumption< 50 mA
Resistor loadMax. 500 Ω
Analogue output4-20 mA (3-wire)
ProtectionIP65 - Plug set DIN 43650
Temperature limitsAmbient: 0 ... 50 °C

Download Data Sheet: Flow Transmitter for IDP-A Z60 - IDP/A
