Hadro Level gauges and switches

Hadro Techniek was founded in 1993 in Breukelen, the Netherlands. After a nice guyed growth we have gone to larger premises in Gouda in 2001, where we are more focus more on the production of magnetic level gauges and float switches.

Hadro Product Below As :

Magnetic level gauges

Magnetisch Peiltoestel Pointer D


Magnetic level gauge models:

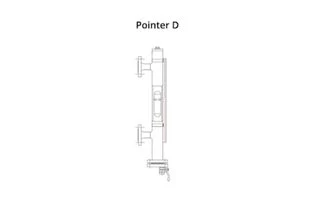

- Magnetic level gauge Pointer D

With two or more process connections for mounting on the side of a vessel. This design is suitable for many different applications, for example condensate tanks, LPG tanks etc.

- Magnetic level gauge Pointer F

 With one process connection on the bottom, this type is suitable for mounting above a tank. This design is mostly used for storage tank below the surface.

- Magnetic level gauge Pointer M

With two or more process connections for mounting on the side of a vessel. This design is specially made for evaporating applications.



- Magnetic level gauge Pointer R

With two process connections at the end of the level gauge, this type is suitable for mounting between two pipelines.

- Magnetic level gauge Pointer L

With one process connection for mounting on the side of a vessel. This model is often used for day tanks for ships.

Switches

HLS-15 Switches



HLS-15: Max. Rating : 2,5A / 60W / 60VA
LMS-Ha2 : Max. Rating : 0,8A / 60W / 40VA
HLS-Ha1 : Max. Rating : 5A / 100W / 100VA
HLS-25i : Max. Rating : 250mA / 1,3W
HLS-Ha1E : Max. Rating : 0,5A / 1,3W
HLS-25d :  Max. Rating : 2,5A / 60W / 45VA
HLS-HaD : Max. Rating : 5A / 100W / 100VA

Reedchain

Reedchain

 Available in

Standard/General purpose

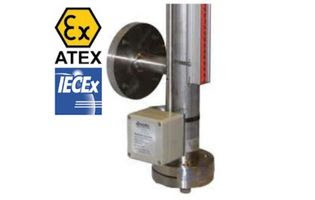

Ex i
         Ex d

Float switches

Float switches


Ref : evelindicator.eu
