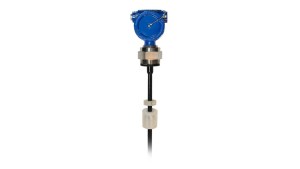

APG Chemically Resistant Level Transmitter MPX-E Chemical

The MPX Series Magnetostrictive Level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The MPX-R’s large, buoyant, and robust float allows it to be used in harsh applications where fouling or buildup might otherwise be of concern. The MPX-E’s lighter weight design allows it to be used in applications where space is limited. The MPX-E Chemical has a chemical resistant coating, allowing for use in corrosive, acidic, and marine environments. And the MPX-F’s flexible stainless steel stem allows for installation in tall tanks without needing a crane. Anti-corrosion coating for use in hostile chemical environments. With a chemical resistant coating and a Kynar® float, the MPX-E Chemical delivers precision measurements in corrosive, acidic and marine environments.

Durable

The coating on the MPX-E Chemical is designed for use in corrosive, acidic, and marine environments. It can withstand sulfuric acid, boric acid, hydrochloric acid, and sodium hydroxide.

Modbus Output

The RS-485 Modbus RTU output makes the MPX compatible with any Modbus controller or PLC. It also simplifies wiring dramatically.

Tank Cloud Compatible

The MPX liquid level sensor is a Tank Cloud slave sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module.

Features

• Class 1 Division 1 Groups C & D, Class 1 Zone 1, Class 1 Zone 2
• Highly accurate and repeatable readings
• 4-20 mA, RS-485 (Modbus RTU) output
• Rugged and reliable, lengths up to 32 feet (9.75 m)
• Dual level (interface) measurement • Tank volume/level, strapping table

Application

• C I, D 1 Hazardous Locations
• Corrosive Chemicals
• Marine (Salt Water) Environments
• Sulfuric, Boric, or Hydrochloric Acids
• Sodium Hydroxide

Specification

Performance
Accuracy	Greater of ±0.04 in. (±1mm) or 0.05% of full range
Resolution	Modbus: ±0.04 in. (±1mm)
	4-20 mA: 14 bit DAC
Electrical
Supply Voltage	12-24 VDC
Maximum Current Draw	Modbus: 25 mA
	4-20 mA: 22 mA
Programming
RS-485	Optional RST-6001 USB to RS-485 converter
4-20 mA	Factory set or optional RST-4100 programming module
Physical
Housing	Cast aluminum, epoxy coated
Stem	316L SS with chemical resistant coating
Stem Length	1 - 12.75 ft. (0.3 - 3.9 m)
Float	1-7/8" OD Kynar®, 0.66 SG
Environmental
Operating Temperature	-40° to 185° F (-40° to 85° C)
Maximum Operating Pressure	30 PSIA @ 70° F (21° C)
Protection Rating	NEMA 4X
	IP65

Download Data Sheet: Chemically Resistant Level Transmitter MPX-E Chemical
