APG Chemically Resistant Magnetostrictive

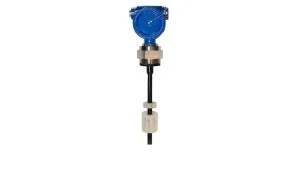

APG Chemically Resistant Magnetostrictive | Float Level Transmitter MPI-E

The MPI Series Intrinsically Safe Magnetostrictive Level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The MPI-R’s large, buoyant, and robust float allows for use in harsh applications where fouling or buildup might otherwise be of concern. The MPI-E’s lighter weight design allows it to be used in applications where space is limited. The MPI-E Chemical has a chemical resistant coating, allowing for use in corrosive, acidic, or marine environments. The MPI-F’s flexible stainless steel stem allows for installation in tall tanks without needing a crane, and the MPI-T’s 1” titanium stem provides compatibility in a wider range of corrosive media--including H2S--in larger tanks.

Anti-corrosion coating and class I, Div 1 ratings. With a coating to keep the probe safe in corrosive liquids and Intrinsic Safety ratings to keep your job site safe, the MPI-E Chemical is perfect for small-scale measurements in big-time nasty environments. The MPI-E Chemical excels in a small tank, corrosive or acidic level-measurement conditions.

Durable

The coating on the MPI-E Chemical is designed for use in corrosive, acidic, and marine environments. It can withstand sulfuric acid, boric acid, hydrochloric acid, and sodium hydroxide.

Modbus Output

The RS-485 Modbus RTU output makes any MPI compatible with any Modbus controller. It also pairs with the MDI controller to create a self-contained, Intrinsically Safe level monitoring solution.

Tank Cloud Compatible

The MPI liquid level sensor is a Tank Cloud slave sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module.

Features

• Class I, Division 1, and Class I, Zone 0 Hazardous Location Rating (cCSAus, ATEX, IECEx)
• Highly accurate and repeatable readings
• RS-485 (Modbus RTU) output
• Rugged and reliable, lengths up to 25 feet (7.62 m)
• Dual level (interface) measurement
• Tank volume or level output, strapping table
• Pairs with MDI display for self-contained, intrinsically safe, level measurement and display system

Application

• Sulfuric (H₂SO₄), Boric (H₃BO₃), or Hydrochloric (HCl) Acids
• Sodium Hydroxide
• Water and Wastewater Treatment
• Pulp and Paper
• Biotech
• Chemical

Specification

Electrical
Supply Voltage	8-24 VDC
Typical Current Draw	Modbus (RS-485): 24 mA
Programming
RS-485	Optional RST-6001 USB to RS-485 converter
	MND/MDI Modbus controller
Performance
Accuracy	Greater of ±0.04 in. (±1mm) or 0.05% of full range
Resolution	Modbus: ±0.04 in. (±1mm)
Physical
Housing	Cast aluminum, epoxy coated
Stem	316L SS with chemical resistant coating
Stem Length	1 - 12.75 ft. (0.3 - 3.9 m)
Float Materials	Kynar

Ref: apgsensors.com

Download Data Sheet: Chemically Resistant Magnetostrictive Float Level Transmitter MPI-E
