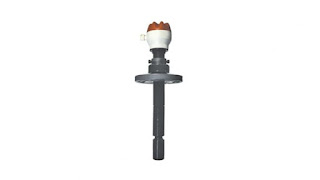

Bamo Level Compact Overfill Sensor MAXIMAT VK C

 Bamo Level Compact Overfill Sensor MAXIMAT VK C

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Bamo Level Compact Overfill Sensor MAXIMAT VK C | Descriptions

The transmitter MAXIMAT is designed to detect conductive liquids non electrically conductive. The detection results from position of a magnet inside the float and a Reed contact. The liquids may not generate deposit originating jamming of float. The MAXIMAT has 3 different outputs, factory built-in:

• Binary output to active optocoupler, numeric input
• Analog 0...20 mA output for any analog input of PLC

Features

• Float level detection
• For aggressive and non electrically conductive liquids
• Positive active alarm
• Auto diagnostic system and LED indication
• Approvals: DIBT Z-65.13-294, for overfilling detection WHG§19, and VLAREM II

Application

With its integrated transmitter and connection for diagnostic, the MAXIMAT is ideal to detect the liquid level and to give an alarm before the overfilling of a tank. Convenient to use with non electrically conductive liquids, oils, emulsified, non-flammable, water endangering liquids (even highly aggressive liquids). It is a perfect instrument to detect fluid in a double wall tank. MAXIMAT VKC operates with liquids of specific weight from 0,7 g/cm3

Another Article: Hengesbach Level Module for Installation in Level Probes Tyoe NM Takuwa Water Level Gauge Sensor Mac3 Float Level Switch Hengesbach Level Module NC1 Series Mechatronics Dizzi Fluid Level Sensor

Specification

Main power supply:	15 ... 26 V DC; caution: DC current circuit should be
	protected by a fuse of 250 mA.
Power consumption:	approx. 3 W
Ambient temperature:	-20 to +60° C
Operating pressure:	atmospheric, 0.8 to 1.1 bar
Terminal housing:	PBT, fibre glass reinforced, IP 65 acc. EN 60 529
Terminals:	screw connectors, IP 20; max. wire cross-section 2.5 mm2
Outputs:
	• Switch [+DO / -DO]: optocoupler NPN, maximum 30 mA
	• Switch [+AO / -AO]: current 0...20 mA
Configuration:	with 4 DIP switches
Lighting signal:	1 LED inside the terminal housing for correct operating system
CE mark:	in accordance with low-voltage directive (73/23/EWG) and EMC directives (89/336/EWG) and standards EN 50 082-2 : 1995, EN 55 011 (class A) : 1998
Approvals	DIBT Z-65.13-294, for overfilling detection WHG§19, and VLAREM II
