Bamo Level Leak Detector on Floor MAXITOP LWC B

Level Leak Detector on Floor MAXITOP LWC B

 Level Leak Detector on Floor MAXITOP LWC B

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

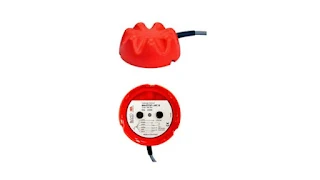

Level Leak Detector on Floor MAXITOP LWC B

MAXITOP LWC-B is designed to detect conductive liquids with a reactance of up to 5 kOhm/cm and when the coupling capacitance towards ground is more than 50 pF. The liquids may not generate electrical insulating or conductive deposit.

MAXITOP LWC-B has 5 different types of connections:

  • Contact output, low voltage (Max. 50 V AC/DC; Max. 0.5 A; Max. 10 VA)
  • Relay output, adding a relay converter CST
  • Output relay, adding a relay converter SHR
  • Direct connections to a PLC
  • Signaling events on site, with devices TC4 or TC1


  • Capacitance detection loop
  • For aggressive and conductive liquids
  • Fail safe; Self diagnostic of loop integrity with SHR or TC4 or TC1
  • Wet parts in plastic materials


The MAXITOP LWC-B is ideal to give an alarm when a leakage occurs on the floor of retentions or collecting areas. With its fail safe detection loop, it is permanently operational.


Power supply15 ... 26 V DC
ConsumptionAbout 1 W
Ambient temperature-20 ... +60 °C
HousingPBT; IP 67 (EN 60529)
Cable outputStandard length: 6 m
 5 x 0.5 mm², shielded, PVC sheath
Trigger pointMinimum height of liquid:1 mm

Download Data Sheet: Level Leak Detector on Floor MAXITOP LWC B
