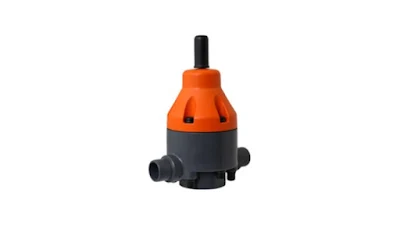

Bamo Pressure Relief Valve DHV 712-R

Pressure Relief Valve DHV 712-R[/caption]

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Pressure Relief Valve DHV 712-R

The DHV 712-R maintains the upstream pressure at a set value to protect the piping in case of override pressure. The thrust of the pressure of fluid on the diaphragm must be greater than the spring strength to release the fluid by the outlet. The diaphragm in EPDM (PTFE coated) separates the adjustment dry space (including the calibrated spring), from the lower space for flowing fluid. All wet parts are made of plastics; The adjustment screw is protected with a plastic cap and secured by a lock nut.

Features

• Protection of pumps and pipings
• Body: PVC-U, PP or PVDF
• Diaphragm: EPDM coated with PTFE
• Fittings from ND 10 to ND 50

Application

• Pressure relief valve for positive displacement and centrifugal pumps
• In-line or bypass installation according the operating conditions

Another Article: Bamo Needle Valve A 32 VS26 Series Norgren Valve Manifolds Kobold Manifold Valves for Multiple Installation Kobold Level Meter and Valve Pressure Relief Valves SPV, SPVF Series Kracht

Specification

Body	PVC-U, PP, PVDF
	Options PTFE or stainless steel (on request)
Diaphragm	EPDM, coated with PTFE
Seals	EPDM or FPM (According body material)
Fittings	Unions or male spigot ends (Flanges on request)
Pressure adjustment range	0.3... 10 bar
Override pressure excess	0.3... 0.5 bar
Hysteresis	About 0.3 bar

Download Data Sheet: Pressure Relief Valve DHV 712-R
