Bamo Side Level Controller CNL

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centering on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader in the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own product range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

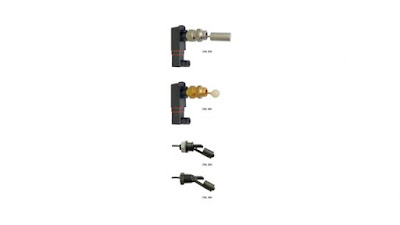

Bamo Side Level Controller CNL |Descriptions

The lateral level controller CNL, consists of a float fixed to a shaft which end has: a magnet on metal models or a magnetic float on PPH models. The float is moved by the liquid and the magnet acts on a reed contact isolated from the liquid.

Features

• Versions: Brass, AISI 316, PP
• Small size
• Tank side mounting
• 1 contact

Application

Level detection for liquids

Another Article: Hengesbach Level Module for Installation in Level Probes Type NM Takuwa Water Level Gauge Sensor Mac3 Float Level Switch Hengesbach Level Module NC1 Series Mechatronics Dizzi Fluid Level Sensor

Specification

Body	AISI 316 / Brass	PPH
Float	AISI 316 / PVDF	PPH
S.G. Min.	0.83	0.78
Seal	FPM	NBR (for CNL 320)
Temperature Max.	110 °C	80 °C
Pressure Max.	6 bar	2 bar
Contact	N.O. or N.C. according set up	N.C.
Hysteresis	About 1 ... 4 mm	10 mm
Switching power	Max. 1 A
on a restive load	Max. 230 V AC or 48 V DC
	Max. 26 VA or 20 W

Ref: bamo.eu

Contact us : sales@wmablog.com or visit our E-Commerce

Download Data Sheet: Side Level Controller CNL
