Flux Air-Operated Diaphragm Pumps FDM Series

The FLUX name has been synonymous with pump technology for more than 70 years. It was the invention of the electric drum pump that sparked it all off. In the meantime, of course, the technology has become more sophisticated. FLUX company innovations have markedly improved working routines for filling and transferring fluids. It is often said that medium-sized companies are the engines of progress.

FLUX is an invention. In the year 1950 the first electric drum pump was introduced. It was named FLUX. Out of this core the FLUX-GERÄTE GMBH was established. The medium-sized company based in Maulbronn develops and sells innovative solutions in the field of pump technology.

Air-Operated Diaphragm Pumps FDM Series

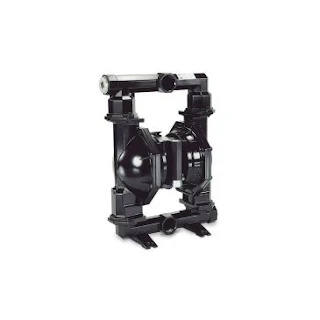

The air-operated diaphragm pump FDM is available in plastic and as metal version. The design ensures a completely oil-free operation. In addition, the pump is available as version for increased pressure (FDMH 25) and for the use in hazardous areas.

The FLUX air-operated diaphragm pump FDM 07 in injection-moulded version is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content.

Features:

• Especially energy efficient due to low air consumption
• Connection suction and pressure side each with internal and external threads
• 100 % start-up guarantee
• Solid matter sizes up to max. 1.6 mm
• Alternative connection position for suction- and pressure side

Advantages:

• Oil-free operation
• Self-priming
• Integrated silencer
• Versions available for use in hazardous areas

Application:

• Aggressive media,
• Abrasive media,
• Flammable media,
• High viscosity media



Specification FDM 07:

• Flow rate: max. 20 l/min¹
• Flow pressure: max. 8,6 bar
• Operating pressure: min. 3 bar - max. 8,6 bar
• Suction head: max. 4,5 m¹
• Suction head product-filled: max. 9,5 m¹
• Size of solids: max. 1,6 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Polypropylene, Acetal conductive
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: 3/4 NPTF
• Connection suction side: 1/4 NPTF, G 1/4

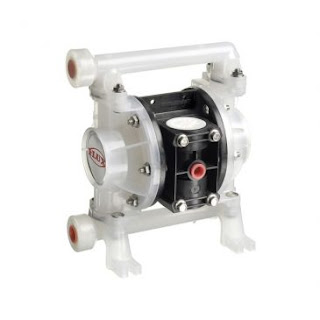

SpecificationFDM 10:

• Flow rate: max. 40 l/min¹
• Flow pressure: max. 7 bar
• Operating pressure: max. 7 bar
• Suction head: max. 4 m¹
• Suction head product-filled: max. 7,6 m¹
• Size of solids: max. 1,6 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Polypropylene, Polyvinylidene fluoride, Acetal conductive
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: G 3/8
• Connection suction side: G 3/8

Specification FDM 25:

• Flow rate: max. 178 l/min¹
• Flow pressure: max. 8 bar
• Operating pressure: max. 8 bar
• Suction head: max. 6,0 m¹
• Suction head product-filled: max. 7,6 m¹
• Size of solids: max. 3,2 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Aluminium, Stainless steel, Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: G 1 oder Flansch 1"
• Connection suction side: G 1 oder Flansch 1"

Specification FDM 40:

• Flow rate: max. 380 l/min¹
• Flow pressure: max. 8 bar
• Operating pressure: max. 8 bar
• Suction head: max. 6,0 m¹
• Suction head product-filled: max. 7,6 m¹
• Size of solids: max. 6,4 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Aluminium, Stainless steel, Grey cast iron, Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: G 1 1/2 oder Flansch 1 1/2"
• Connection suction side: G 1 1/2 oder Flansch 1 1/2"

Specification FDM 50:

• Flow rate: max. 650 l/min¹
• Flow pressure: max. 8 bar
• Operating pressure: max. 8 bar
• Suction head: max. 4,2 m¹
• Suction head product-filled: max. 7,6 m¹
• Size of solids: max. 6,4 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Aluminium, Stainless steel, Grey cast iron, Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: G 2 oder Flansch 2"
• Connection suction side: G 2 oder Flansch 2"



Specification FDM 80:

• Flow rate: max. 1040 l/min¹
• Flow pressure: max. 8 bar
• Operating pressure: max. 8 bar
• Suction head: max. 4,2 m¹
• Suction head product-filled: max. 7,6 m¹
• Size of solids: max. 9,5 mm
• Viscosity: min. 1 mPas - max. 15000 mPas²
• Housing Materials: Aluminium, Stainless steel, Grey cast iron
• Media / Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media
• Connection pressure side: G 3
• Connection suction side: G 3



Ref: flux-pumps.com
