Hengstler Totalizing Counter Type 495

Hengstler Totalizing Counter Type 495

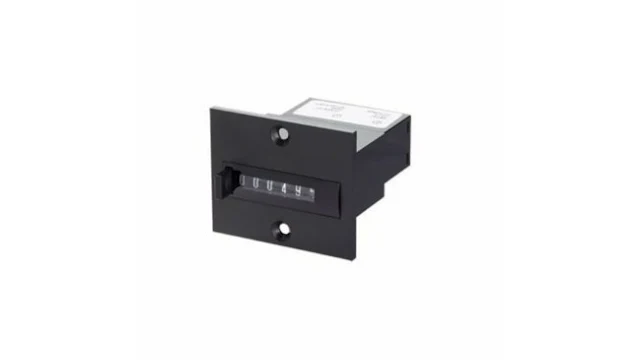

Hengstler Totalizing Counter Type 495[/caption]

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters through to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers and timers. Totalizing counters tend to be used to register the number of events and display the result as a digital numerical value. The key characteristics of this versatile range of products, as you would expect from any HENGSTLER product, are state-of-the-art technology, appealing design, quality and reliability. Examples of typical applications: Production counting, recording flow volumes.

Hengstler Totalizing Counter Type 495 | Descriptions

Type 495 integrated, impressively easy installation using hose coupler or rapid-fit connector, maintenance-free operation. This integrated totalizing counter is available in two designs, with either 6 or 8-digit display. Type 495 integrated is available without a reset function or with manual or pneumatic reset. The user-friendly Type 495 for surface-mounting is easily fitted using hose couplers or a rapid-fit connector and is maintenance-free in use. The totalizing counters for surface-mounting has a 6-digit display and is equipped with a convenient pneumatic or manual reset function.

Features

  • The display has 6 or 8 digits
  • Reset is manual, pneumatic or with no reset
  • Simple installation
  • Hose coupler or rapid-fit connector
  • Maintenance-free operation

Another Article:

Specification

Product Family495
FunctionTotalizing counter
TechnologyPneumatic
Digits6-digit
 8-digit
Display6-digit
 8-digit
Presetnone
Digit Height [mm]4 mm (0.2 in)
Voltage-
Resetmanual reset
 pneumatic reset
 without reset
Pulse Length min.8 ms
Count Frequency [Hz]25 Hz
Count Inputadding
Maintenance-Free operationcounting 30 x 10 pulses
 reset 1.5 x 10 pulses
IP Protection Class-
Operating Temperature [°C]- 15 ...°C+ 60 °C (+ 14 ... 122 °F)
Storage Temperature [°C]- 40 ...°C + 60 °C (+ 14 ... 122 °F)
Vibration Resistance50 m/s2 (164 ft/s2) acc. IEC 0682-6
Shock Resistance400 m/s2 (1312 ft/s2) acc. IEC 068 2-27
Service Pressure2 - 8 bar
Air Qualityoil-free
Filter Pore Width< 40 m
Size [mm]Panel: 60(56)x50(40)x65
 Surface: 100x53x26
Mounting OptionsFront panel installation
 Surface mounting
Mountingfront panel installation
 surface mounting
Resetmanual reset with button
 external pneumatic signal, min. 180 ms
 without reset
Weight [g]approx. 60 g (3.2 oz)
Dimensions [mm]flush mounting: 56 x 40 x 65 mm (2.0x1.6x2.6 in) or 60 x 50 x 65 mm (2.3x1.9x2.6 in)
 surface mounting: 100x53x26 mm (3.9x2.1x1.0 in)
Mounting Positionany
Connectionhose coupler M5
 rapid-fit connector

Ref: hengstler.de

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Data Sheet: Totalizing Counter Type 495
