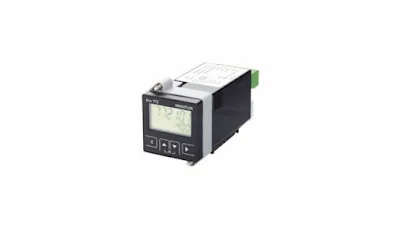

Hengstler Totalizing Counters Tico 772

Hengstler Totalizing Counters Tico 772


Hengstler Totalizing Counters Tico 772

Hengstler is a leading European manufacturer of industrial components for counting and control applications, such as counters/timers, rotary encoders, industrial and temperature controllers, relays, and printers and cutters. Today’s automation leaders are seeking solutions that will enable machines with advanced analytics, condition monitoring, and predictive maintenance, while also offering improved efficiency, and fast time to market. None of these alone are easy challenges. However, your competitors are launching new solutions at an increasing rate meant to meet these challenges.

Hengstler has created SCS Open Link, an open communication platform that provides high-performance data transmission over a cost-effective single-cable solution, designed to quickly and efficiently connect rotary encoder and other sensors to edge computing and Industry 4.0 solutions.

Hengstler Totalizing Counters Tico 772 | Descriptions

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers, and timers. Totalizing counters tend to be used to register the number of events and display the result as a digital numerical value. The key characteristics of this versatile range of products, as you would expect from any HENGSTLER product, are state-of-the-art technology, appealing design, quality, and reliability. Examples of typical applications: Production counting, recording flow volumes

The members of this product family are really multitalented, feature up to three presets, and can be connected up using plug-and-play connectors. They allow very high counting frequencies of up to 60 kilohertz and are universally suitable for use as pulse-counters, tachometers, timers, shift or batch counters. The large multi-colored 6-digit display is backlit and easy to read. The flexibility of the programming levels offered by this multifunctional counter allows it to be used as a totalizing counter and, if required, with many programmable functions.

Features

  • Very simple operation
  • Four different backlighting colours
  • Large, easily read display
  • Counting frequency up to 60 kHz
  • Prescaler 0.0001 - 99.9999

Another Article:

Specification

Product Familytico 772
FunctionTotalizing counter
TechnologyElectronic
Digits6-digit
Display6-digit
 2-line
 count reading/presets
 leading zero suppression
 decimal point (up to 4 places)
Preset3 presets
Digit Height [mm]1. Line 9.3 mm (0.4 in)
 2. Line 7.2 mm (0.3 in)
Display Variantreflective LCD
 transflective positive LCD, black digits, backlit
 transmissive negative LCD, white digits, red or green backlit, background black
View Angle12:00
Relay1 or 1 relays
Size [mm]48x48x118
Mounting OptionsClamping frame
Mountingwith clamping frame
Resetmanual reset using keypad
 external reset static or dynamic
 pulse duration min. 5 ms
 automatic reset after preset 2 has been reached
 no loss of pulse at the maximum counting frequency due to automatic resetting. programmable using application input and power-up reset
Weight [g]approx. 200 g (3.2 oz)
Dimensions [mm]48 mm x 48 mm x 118 mm (1.9 x 1.9 x 4.6 in), installation depth 110 mm (4.4 in), DIN 43 700
Panel Thickness [mm]max. 11 mm

Ref: hengstler.de

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Data Sheet: Totalizing Counters Tico 772
