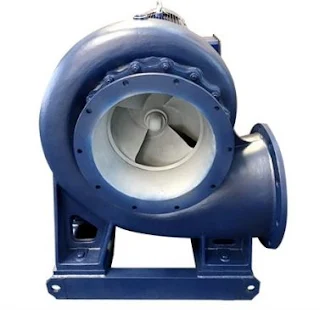

HW(HBC) Volute Mixted Flow Pump

 hw Volute Mixted Flow Pump

HW(HBC) Volute Mixted Flow Pump are designed for front and rear, and there is no need to dismantle the pipeline during maintenance. This is a major improvement on the structure of the mixed-flow pump produced by our company, which greatly facilitates the user's maintenance and repair. The water inlet of the pump is horizontal water inlet, and the water outlet has vertical water discharge (upper water and horizontal water (lower water)). The pump is usually installed in horizontal suction type or inclined type. For down-center installation, users can choose according to design requirements and local water level changes and usage habits.

Performance Range:

• Capacity:130m³/h~1200m³/h
• Head:3.5m~15m

Application:

• It is suitable for conveying clean water or other liquids with physical and chemical properties similar to water.
• The temperature of the liquid to be transported should not exceed 50 °C.
• Widely used in a variety of occasions such as irrigation and drainage, industrial and urban water supply and drainage.

Overview

-Purpose

The Hw pump is a horizontal, single-stage, single-suction, vortex mixed-flow pump suitable for transporting clean water or other liquids with physical and chemical properties similar to water. The temperature of the liquid to be transported should not be higher than 50ºC. It is widely used in farmland irrigation and drainage, industrial and urban water supply drainage and other occasions.

-Feature

Simple structure, reliable use, convinient decoration, high efficiency, small size and light weight.

-Transmission mode

There are direct drive and variable speed drive. Commonly used power machines are electric motor and Rongyou machines. When ordering, the model (power plan, number of revolutions) and specifications of the machines should be specified.

-Pump direction

Looking the inlet of the watering pump, the impeller generally rotates counterclockwise, (650HW-5, -7, -10 pump are the subject of clockwise rotation).

-The HW pump production license number is XK06-029-2024-2027

Model and capacity

Model	Capacity	Head	Speed	Efficiency	Power	NPSH
	m3/h	m	rpm	%	kw	M
150HW-5	137	6.1	1450	75	3.3	2.7
	180	5		82	2.99
	216	3.7		74	2.94
150HW-8	137	8.7	1450	75	4.78	2.7
	180	8		82	4.78
	216	6.8		74	4.78
150HW-12	137	15.3	2900	75	7.6	6
	180	12.5		82	7.47
	216	9.7		74	7.71
200HW-5	360	5	1450	81.5	6.01	4
	360	5		81.5	6.01
	360	5		81.5	6.01
200HW-8	270	9.6	1450	76	9.29	4
	360	8		83.5	9.39
	432	6		75	9.41
200HW-12	270	13.5	1450	83.5	14.68	4
	360	12.5		83.5	14.68
	432	10.8		83.5	14.68
250HW-5	540	5	1180	82	8.97	4
	540	5		82	8.97
	540	5		82	8.97
250HW-8	335	6.5	970	77	7.67	2.7
	444	5.4		84	7.78
	553	4.1		76	7.74
250HW-8	407	9.6	1180	77	13.81	4
	540	8		84	14.01
	648	6		76	13.93
250HW-8	500	14.5	1450	77	25.6	6.4
	664	12.1		84	26
	796	9.1		76	25.9
250HW-12	407	13.5	1180	84	21.8	4
	540	12.5		84	21.8
	648	10.8		84	21.8
300HW-5	792	5	970	83	12.99	4
	792	5		83	12.99
	792	5		83	12.99
300HW-8	594	9.6	970	78	19.9	4
	792	8		85	20.3
	950	6		77	20.1
300HW-8A	507	4.4	730	82	7.56	3
	581	3.9		84	7.48
	678	2.8		78	6.75
300HW-8A	680	8	980	82	18.44	4
	780	7		84	18.08
	910	5		78	16.22
300HW-8A	902	14.1	1300	82	43.16	5
	1035	12.3		84	42.17
	1207	8.8		78	37.79
300HW-12	594	13.5	970	85	31.72	4
	792	12.5		85	31.72
	950	10.8		85	31.72
150HW-6	140	6.6	1450	75	3.36	3
	180	6		82	3.59
	200	5		78	3.52
150HW-6	174	10.1	1800	75	6.46	4
	223	9.2		82	7.07
	248	7.7		78	6.72
200HW-10	300	8	1200	77	8.45	4
	360	7		83	8.22
	450	5		70	8.12
200HW-10	360	12	1450	77	15.27	5
	450	10		83	14.68
	540	7		77	14.32
200HW-10	400	14.5	1600	77	20.49	5.5
	500	12.5		83	19.91
	600	9.5		77	20.2
250HW-7	400	8	980	81	10.75	4
	450	7		84	10.22
	500	6		79	11.87
250HW-11	400	5.5	980	83	7.22	4
	450	4.8		84	7
	500	4		80	6.81
250HW-11	550	13.2	1450	83	23.85	6
	650	11.6		84	24.37
	720	9.8		80	24.02
250HW-11	640	15.5	1600	83	32.59	6.5
	720	14.3		84	33.38
	800	11.8		80	32.11
350HW-8	670	5.2	730	85	11.16	4
	745	4.4		85	10.44
	819	3.7		81	10.15
350HW-8	900	9.4	980	85	27.1	5
	1000	8		85	25.5
	1100	6.7		81	24.66
400HW-7	1080	7.8	730	84	27.31	4
	1260	6.8		86	27.13
	1368	6.2		84	27.5
400HW-7	1450	14	980	84	66.32	5
	1692	13		86	65.9
	1836	11		84	66.67
400HW-8	1116	8.4	730	86	29.67	4
	1116	8.4		86	29.67
	1116	8.4		86	29.67
400HW-10	1098	11.5	730	83	41.5	4
	1400	10		86	44.3
	1720	7.5		83	42.4
400HW-10	1474	20.7	980	83	100.1	5
	1880	18		86	107.1
	2309	13.6		83	102.4
500HW-11	1690	7.6	580	83	41.9	5.5
	1980	6.2		87	38.4
	2180	5.3		80	39.1
500HW-11	2172	12	730	83	83.4	6
	2492	9.8		87	76.4
	2744	8.4		80	78.1
650HW-5	2650	7	485	86	60	5.5
	3312	5		85	54.1
	3600	4		79	49.6
650HW-5	3224	10.5	590	86	108.1	6
	4032	7.5		85	97.5
	4379	6		79	89.3
650HW-7	3060	7.4	450	85	72.5	5.3
	3400	6.5		88	68.4
	3960	5		85	63.4
650HW-7	3295	8.6	485	85	90.8	5.5
	3663	7.6		88	86.1
	4244	5.9		85	80.6
650HW-7	4014	12	590	85	163.3	6
	4457	11		88	154.2
	5193	8.5		85	142.9
650HW-10	3200	15.8	590	81	170	6
	4000	14		88	173.3
	5000	10.4		85	166.6
650HW-10	2658	10.9	490	81	97.4	5.5
	3322	9.7		88	99.7
	4153	7.2		85	95.8
800HW-10	4784	14.8	490	85	227	5.5
	5980	12.2		88	225
	7176	8.6		80	210
