Mobile Oil Skimming Systems, Oil skimmer-oil skimming

THERE ARE 3 VARIETIES OF MOBILE SKIMMING SYSTEMS:

• Cart Mounted
• Pallet Mounted
• Mobile ORTS

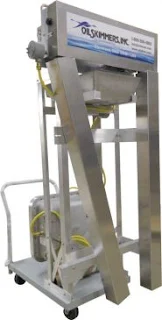

Cart Mounted Oil Removal Systems are used to easily move the skimming system from one sump, pit, tank, or pond to another. Cart Mounts are available for applications from small to large; moving a Model 1H from one part washer to the next, or moving an Extended Reach ORTS with a 1,000-gallon tank from one pond to another.

Cart Mounted Oil Removal Systems feature:

• Oil Skimmer with Safety Cover
• Frame Mount on Cart with Handle
• Sludge Pan (Model 6V or 7V)
• Oil/Water Decanter
• Cover for Sludge Pan and Decanter
• Basic Control Panel (Skimmer Motor ON/OFF)

Available with the following options:

• Skimmer Heat (120V or 240V Heat Rod)
• Sludge Pan Heat (120V or 240V Heat Pad)
• Decanter Heat (120V or 240V Heat Rod)
• *Epoxy Coating (Skimmer only or entire system)
• Ceramic Lined Tube Guards
• *Variable Frequency Drive (VFD) to control skimmer speed
• Explosion Proof heat, motor, and controller
• Control panel additions (Timer, Heat Control, Level Switches, etc.)

PALLET MOUNTED OIL REMOVAL SYSTEM

Pallet Mounted Oil Removal Systems can be easily moved by forklift or pallet jack from one skimming location to another.

Pallet Mounted Oil Removal Systems comes complete with:

• Oil Skimmer with Safety Cover
• Frame Mount on Pallet
• Sludge Pan (Model 6V or 7V)
• Oil/Water Decanter
• Cover for Sludge Pan and Decanter
• Basic Control Panel (Skimmer Motor ON/OFF)

Available with the following options:

• Skimmer Heat (120V or 240V Heat Rod)
• Spout Heat (120V or 240V Heat Pad)
• Decanter Heat (120V or 240V Heat Rod)
• Heat Tracing and Insulation of entire system
• Insulated Weather & Wind Jacket
• *Epoxy Coating (Skimmer only or entire system)
• Ceramic Lined Tube Guards
• *Variable Frequency Drive (VFD) to control skimmer speed
• Explosion Proof motor and controller
• Control panel additions (Timer, Heat Control, Level Switches, etc.)

MOBILE ORTS (OIL REMOVAL & TRANSFER SYSTEM)

Recover waste oil at multiple plant locations or at various points around large ponds and lagoons with one versatile, portable, tank-mounted oil recovery system.

Efficiency and simplicity, defined:

• Choose a site.
• Swing the boom into place.
• Drop in the tube.

The long reach of the boom ensures that no physical obstruction or rough terrain will interfere with the placement of this oil skimmer over the water. Positioning is fast and easy, time after time. And, recovered oil is stored in a collection tank for easy removal.

The balanced boom on the Mobile Extended Reach ORTS allows 360-degree rotation and movement up and down as required for simple placement, easy servicing on dry land, and convenient transportation. Its extra-long reach also ensures that terrain conditions at the pit, pond, or ditch edge will not interfere with the efficient placement of the oil skimmer over the water.

Mobile ORTS systems come complete with:

• Oil Skimmer with Safety Cover
• 300-2,000 Gallon Tank with Balanced Boom
• Oil Collection Spout with Skimmer Mount
• Oil transfer pump (Type based on customer's specification)
• Basic Control Panel (Skimmer Motor ON/OFF)
• Up to 40' Standard Collector Tube

Available with the following options:

• Oil/Water Decanting System
• Skimmer Heat (120V or 240V Heat Rod)
• Spout Heat (120V or 240V Heat Pad)
• Decanter Heat (120V or 240V Heat Rod)
• Heat Tracing and Insulation of entire system
• Insulated Weather & Wind Jacket
• *Epoxy Coating (Skimmer only or entire system)
• Ceramic Lined Tube Guards
• *Variable Frequency Drive (VFD) to control skimmer speed
• Explosion Proof motor and controller
• Control Panel Additions (Timer, Heat Control, Level Switches, etc.)

Ref: oilskimmer.com
