Submersible Sewage Pump (CP Series)

Submersible Sewage Pump (CP Series)

Submersible Sewage Pump (CP Series) | Commercial, Residential and Industrial

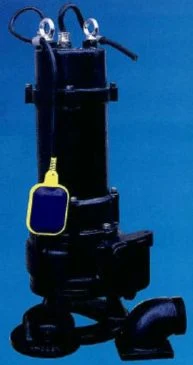

CP Submersible Sewage Pumps are designed for economical and reliable pumping of sewage water from commercial, residential, and industrial sources. They are suitable for pumping clear and wastewater containing solids and fibrous material.

Used in conjunction with the automatic coupling system, the below ground level wet installation is a particularly economical solution that also does not damage the environment. These pumps are also suitable for quick portable applications.

It is a heavy-duty, submersible cutter pump for sewage and wastewater, which are made of castings and equipped with a cutting mechanism. Featuring a combination of impeller vane with brazed sintered tungsten carbide alloy edge and a suction cover of serrated shape, the C-series pumps enable smooth pumping, while cutting fibrous foreign objects during suction. These pumps have been used to drain sewage and wastewater from buildings and kitchens, and to transfer sewage and wastewater in water treatment facilities of factories and commercial complexes.

Specifications

  • Speed: 1450 and 2900 RPM.
  • Discharge diameter: 2 - 6 inches (50 - 150 mm).
  • Flow rate:  44 - 665 GPM (10 - 150 m3/H)
  • Head: 20 - 131 feet (6 - 40 m).
  • Power: 1 - 10 HP (0.75 - 7.5 kW).
  • Power source: 110 - 380v, 50 Hz.
  • Maximum temperature: +104°F (40°C).

Paragon Pump Company was founded by a group of dedicated professionals with over ninety (90) years of experience in the Pump Industry. The parent company is located in Tampa, Florida and Paragon Pump Asia Pte, Ltd. is based in Singapore.

All of our pumps have been thoroughly evaluated and tested to assure the highest quality in workmanship and performance. All pumps are manufactured to rigid international specifications in facilities certified to ISO 9001.

In the U.S.A., Paragon Pump Company is headed by Joe Changi, President, who has worked for thirty-five (35) years in the Pump Industry with Flowserve (Durco Pumps) and Crane Pumps & Systems (Crane Deming, Weinman, Burks, Barnes and Crane Chempump).

Paragon Pump Asia is lead by Mr. S. S. Khoo, Managing Director, with twenty-five (25) years in the Pump Industry, selling Worthington, Ingersoll Rand, Weinman, Crane Deming, Burks, Barnes, and TKL pumps. Ken Lim and Dennis Goh, Directors, have worked fifteen (15) years each in the Pump Industry.

Ref: paragonpump.com

Contact us : sales@wmablog.com or visit our E-Commerce

Download Catalog: Submersible Sewage Pump(CP Series)
