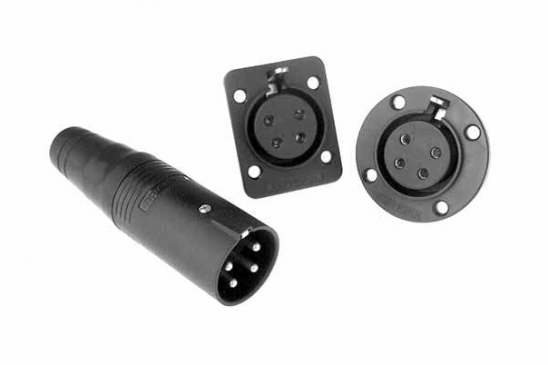

The AP Series Shell is manufactured from tough, durable thermoplastic, and ideal for fixed indoor installations. Both the EP and AP Series utilize the same contact and insulator components.
Features
- High current contacts for a distortion-free signal.
- Cost-effective durable thermoplastic shell
- Quick-release, vibration resistant latch lock.
- AP & EP series is completely intractable.
- Precision machined contacts
- Thermoplastic shell
Options
- Available in 4, 5, 6, and 8 contact arrangements.
Another Article: |
SPECIFICATIONS
EP and AP loudspeaker connector AmphenolVALUE | ||||||
GENERAL CHARACTERISTICS | Number of contacts | 3 | 4 | 5 | 6 | 8 |
Contact Arrangements (Front view of pin insert) | ||||||
Termination | SOLDER | |||||
Wire Gauge - Stranded wire: | 12AWG | 12AWG | 12AWG | 12AWG | 14AWG | |
Flammability | UL94V-0 | |||||
Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | |||||
ELECTRICAL | Service Voltage RMS1) | 460V | 660V | 200V | 200V | 100V |
Test Voltage AC RMS | 2400V | 3000V | 1600V | 1600V | 1300V | |
Current carrying capacity | 20A | 20A | 20A | 20A | 15A | |
Typical Contact Resistance | ≤3mΩ | |||||
Insulation Resistance | ≥1000MΩ | |||||
CLIMATIC CHARACTERISTICS | Protection Class | IP40 | ||||
Operating Temperature | 25˚C to +75˚C (-13°F to +167°F) | |||||
MECHANICAL CHARACTERISTICS | Weight - EP 11 & 12 2) | 80g (0.176lb) | 84g (0.185lb) | 86g (0.189lb) | 86g (0.189lb) | 86g (0.189lb) |
Weight - EP 13 & 14 2) | 48g (0.105lb) | 50g (0.110lb) | 54g (0.119lb) | 54g (0.119lb) | 54g (0.119lb) | |
Weight - AP 11 & 12 2) | N/A | 42g (0.092lb) | 44g (0.097lb) | 44g (0.097lb) | 44g (0.097lb) | |
Weight - AP 13, 14, 21 & 22 2) | N/A | 26g (0.057lb) | 30g (0.066lb) | 30g (0.066lb) | 28g (0.061lb) | |
Typical Cable retention force | 22Kg to 44Kg (50lb to 100lb) - Dependant on cable material and diameter | |||||
Mechanical operations | 1000 mating cycles |
Download Catalog: Amphenol Connector Catalog
Ref: Amphenol.com
