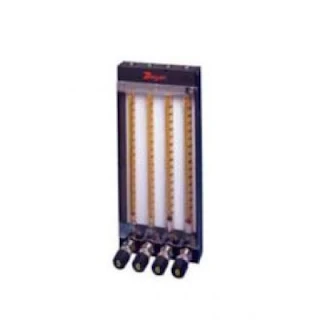

Dwyer Series MTF Multi-tube Flow System

 Flow includes Flow Transmitters, Flow Sensors, Flow meters, Sight Flow Indicators and Water Meters. Mass Flow meters, Controllers, Flow Indicators and Controllers are ideal for measurement of flow rates. Flow Switches come as paddle, thermal, piezo, and shuttle/piston.

Flow meters indicate flow rate. The different sensors include dial, in-line, ultrasonic, orifice plate, totalizing meters, variable area, venturi, or with switch output.

The different designs of the flow meters have a variety of applications. Tapered bore in-line indicators for flow rate. Ideal for high purity or corrosive liquid applications, gas and liquid applications, air samplers and medical applications. Flow meters are shipped assembled and ready for panel mounting.

Customize flow systems to meet application requirements. Systems can be configured with up to six different flow tubes with various flow capacities and flow patterns. The Series MTF Multi-tube Flow Systems are ideal for multichannel metering, mixing, or monitoring applications.

Dwyer Series MTF Multi-tube Flow System | To Customize your flow system:

  1. Determine the flow pattern required for the application.
  2. Select a 65 mm or 150 mm frame, along with the appropriate number of tubes required, flow pattern, and wetted parts. Choose a 150 mm Gas Proportioner Frame (Series MTP) to blend the 2 or 3 gases at required concentrations. Gas proportioner frames are typically used at 50 psi.
  3. Choose the appropriate 65 mm or 150 mm correlated flow tubes, for air or water.
  4. Select a valve cartridge if desired that matches the range of the flow tube.

Features

  • Ideal for multichannel metering, mixing, or monitoring applications.
  • Universal 65 mm or 150 mm scales with correlation charts.

Another Article:

Specification

ScalesUniversal 65 mm or 150 mm scales with correlation charts.
AccuracyAccuracy: *Correlated Flow Tubes: +/- 2% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm absolute); Direct Reading Flow Tubes: +/- 5% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm absolute). *Models FT-61, FT-62, FT-123, and FT-124 have an accuracy of +/- 5% FS @ 70 deg F (21.1 deg C) and 14.7 psia (1 atm absolute).
Repeatability±0.25% of scale reading.
Turn-down Ratio10:1, 20:1 with combinations of two floats installed in meter.
Maximum Operating Pressure200 psig (13.8 bar).
Maximum Operating Temperature250°F (121°C).
MountingVertical.
Connection1/8" female NPT.
FlowtubeBorosilicate glass.
Float316 stainless steel or black glass as indicated.
Float StopsPTFE.
End FittingsAnodized Aluminum or 316 stainless steel.
Front ShieldPolycarbonate.
Side PanelsBlack, anodized aluminum.
O-ringsBuna-N on aluminum models and Fluoroelastomer on stainless steel models.

Ref: dwyer-inst.com

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Data Sheet: Series MTF Multi-tube Flow System
