Vogtlin Red-y Compact 2 Series Digital Mass Flow Meters and Regulators

Battery Gas Flow Meters MF5700

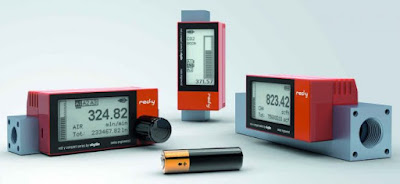

The Vogtlin red-y compact 2 series mass flow meters are characterized by powerful technology, intelligent functions and innovative design.This latest generation offers a new level of ease of use: compact design with battery power and touch display for great flexibility and extended alarm function.

Feature

Touch Interface

The touch display offers intuitive navigation. The many variables that make the unit flexible are easily accessible. Automatic display alignment thanks to position sensor.

Independent Operation

The flow meters are powered with a standard AA battery or Micro-USB power supply. Optional 24 Vdc power supply available.

Modular Extensions

The instruments can be extended and retrofitted with different modules: battery module, power module and alarm module.

High Accuracy & Dynamics

The devices offer high accuracy & a wide dynamic range:Accuracy up to ±1% of full scaleTurndown ratio up to 1 : 100 (depending on application/measuring range)

Totalizer

In addition to the actual flow, the total consumption is displayed. Ideal for gas consumption measurements

1 Device – Multiple Gases

One measuring device can be used for up to 3 different gases or gas mixtures.

Password Protection

To avoid unauthorised change of settings, the menu of the new red-y compact can be locked with a password.

Specification

Measuring ranges
(full scale freely selectable)TypeMeasuring range (air)Process connection
 GCX-Afrom 0 ... 50 mln/min to 0 ... 600 mln/miG¼"
GCX-Bfrom 0 ... 600 mln/min to 0 ... 6000 mln/minG¼"
GCX-Crom 0 ... 6 ln/min to 0 ... 60 ln/minG¼"
GCX-Cfrom 0 ... 60 ln/min to 0 ... 450 ln/minG½"
Performance data
Media (real gas calibration)Air, O2*, N2*, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request)*O2 & N2 are calibrated with air
Accuracy (air & equivalents)Eco: ± 2.0% of full scale; ranges > 200 ln/min ± 3.0% of full scale
Special: ± 1.0% of full scale up to 50 ln/min
Turndown ratioEco: 1 : 50 Special: 1 : 100
Response time40 msec (battery mode 500 msec)
Display update240 msec (battery mode 500 msec)
Repeatability± 0.5% of full scale
Longterm stability< 1% of measured value / year
Power supply Meter GCM & Regulator GCRStandard AA battery (lifetime in months depending on operation) orMicro-USB power supply (DIN 62684) Option: External power +8...30 Vdc (power consumption max. 120mA)
Power supply Switch GCS & All-in GCAExternal power +8...30 Vdc (power consumption max. 300mA) orMicro-USB power supply (DIN 62684)
Operation pressure0.2 – 11 bar a
Temperature (environment/gas)0 – 50°C
MaterialsAnodized aluminium, optional stainless steel electropolished
SealsFKM, optional EPDM (FDA)
Pressure sensitivity< 0.2% / bar of reading (typical N2)
Temperature sensitivity< 0.025% FS measuring range type / °C
Warm-up time< 1 sec. for full accuracy
Integration
DisplayTouch display (128x64 px) with automatic position adjustment (position sensor)Backlighted only with external power supply (Micro-USB or 24 Vdc)
Process connectionG¼" (BSPP* female) up to 60 ln/min, G½" (BSPP* female) up to 450 ln/min*British Standard Pipe Parallel
Inlet sectionNone required
Mounting orientationAny position, consult manufacturer above 5 bar or vertical mounting
Connection cableFor external power supply or alarm module: 2 m with fly leads
Safety
Test pressure16 bar a
Leak rate< 1 x 10-6 mbar l/s He
Ingress protection classIP-50
EMCEN 61326-1
