Paragon PV Series Vertical Multistage Pump

Paragon PV Series Vertical Multistage Pump

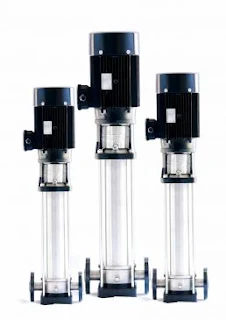

The PV Series is a stainless steel vertical multistage pump available in eight sizes with up to 26 stages. These pumps are suitable for clean water or liquids. They are widely used for high buildings, plants, mining, city water supply systems and irrigation.

Specification

  • Ambient Temperature: To a maximum +104°F (40°C).
  • Liquid Temperature: Standard design: -5°F to +194°F (-15°C to 90°C ).
  • Liquid Temperature: Hot water design: 5°F to +248°F (-15°C to 120°C ).
  • Min. Suction Pressure: Two (2) feet (0.6m) above required NPSH.
  • Electric Motor standard supplied as: 60 Hz, single phase 110v or three phase 220v, aluminum casing, IP54, class F.  50 Hz, single phase 220v or three phase 380v, aluminum casing, IP54, class F.
  • Pump material: 304 or 316 stainless steel.

Model and Material

Paragon PV 1 3 Series Vertical Multistage Pump
PV 1, 3
No.NameMaterial
1Motor-
2Pump HeadCast Iron
4Mechanical Seal-
5Top Diffuser304 Stainless Steel
6Diffuser304 Stainless Steel
7Support Diffuser304 Stainless Steel
8Inducer304 Stainless Steel
11Bearing-
12Impeller304 Stainless Steel
13Shaft304 Stainless Steel
14Impeller Sleeve304 Stainless Steel
15Cylinder304 Stainless Steel
16Coupling-
SS304 Type
3Seal Base304 Stainless Steel
9Inlet & Outlet Chamber304 Stainless Steel
10Base PlateCast Iron

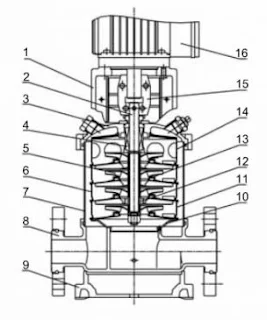

Paragon PV 8, 12, 16, 20 Series Vertical Multistage Pump

Paragon PV 2, 4 Series Vertical Multistage Pump


Paragon PV 2, 4 Series Vertical Multistage Pump


PV 2, 4, 8, 12, 16, 20
No.NameMaterial
1Motor FlangeCast Iron
2Pump Shaft304 Stainless Steel
3Mechanical Seal304 Stainless Steel
4Top Diffuser-
5Diffuser304 Stainless Steel
6Support Diffuser304 Stainless Steel
7Inducer304 Stainless Steel
8Bearing304 Stainless Steel
9ImpellerCast Iron
10Shaft304 Stainless Steel
11Impeller Sleeve304 Stainless Steel
12Cylinder-
13CouplingF-4
14Seal Base304 Stainless Steel
15Inlet & Outlet Chamber-
16Base Plate-

Paragon PV 32, 45, 65, 85 Vertical Multistage pump
PV 32, 45, 65, 85
No.NameMaterial
1Motor FlangeCast Iron
2Pump Shaft304 Stainless Steel
3Mechanical Seal Seat304 Stainless Steel
4Mechanical Seal-
5Diffuser304 Stainless Steel
6Impeller304 Stainless Steel
7Cylinder304 Stainless Steel
8Base304 Stainless Steel
9Base PlateCast Iron
10Bearing-
11Inducer304 Stainless Steel
12Support Diffuser-
13Bearing-
14Seal Ring-
15Top Diffuser304 Stainless Steel
16Coupling-
17Motor-

Paragon PV 120, 150 Vertical Multistage pump
PV 32, 45, 65, 85
No.NameMaterial
1BracketCast Iron
3Mechanical Seal-
4Discharge304 Stainless Steel
5Support Diffuser304 Stainless Steel
6Diffuser304 Stainless Steel
7Inducer304 Stainless Steel
9Base PlateCast Iron
11Impeller304 Stainless Steel
12Shaft304 Stainless Steel
13Bearing-
14Cylinder304 Stainless Steel
15Coupling-
Cast Iron Type
2Pump HeadCast Iron
8Inlet & Outlet ChamberCast Iron
SS304 Type
2Pump Head304 Stainless Steel
8Inlet & Outlet Chamber304 Stainless Steel

Download Datasheet: Paragon PV Series Vertical Multistage Pump
