F-3500 Series Insertion Electromagnetic Flow Meter


DESCRIPTION

ONICON Incorporated’s F-3500 series insertion electromagnetic flow meters are suitable for measuring electrically conductive liquids in a wide variety of applications. Each F-3500 provides a single analog output for flow rate, a high resolution frequency output to drive peripheral devices, a scalable pulse output for totalization, and an empty pipe alarm signal.

Two versions of the F-3500 are now available. The standard configuration F-3500 is suitable for pipe sizes ranging from 3” to 72” in diameter. The small pipe configuration F-3500 is suitable for pipes ranging in size from 1¼” to 2½” in diameter. Optional remote displays and BTU measurement systems are also available for both versions.

APPLICATIONS

• Accurate, reliable flow measurement for HVAC applications
• Ideal for monitoring open loop condenser water flow
• Hot tap design simplifies domestic water retrofit installations
• Cost-effective way to monitor flow in larger pipe sizes
• Suitable for use in water and water/glycol systems

CALIBRATION

Every ONICON flow meter is wet calibrated in a flow laboratory against standards that are directly traceable to NIST*. A certificate of calibration accompanies every meter.


FEATURES

Simple Installation and Commissioning -
Factory programmed and ready for use upon delivery.
Exceptional Performance & Value -
Cost-effective insertion style design provides accuracy and reliability normally only found in more expensive full bore devices.
Excellent Long Term Reliability -
Low maintenance, no-moving-parts flow sensing technology works well in difficult flow measurement applications such as open loop condenser water flow.
Highly Accurate Over a Wide Flow Range -
Highly efficient sensor design and continuous auto-zero function improve accuracy and
sensitivity, particularly at low flow rates.

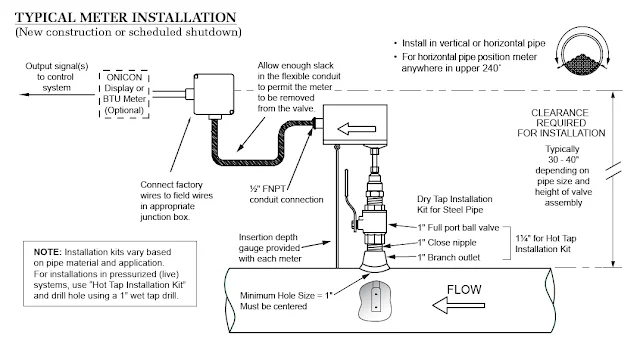

Simplified Hot Tap Insertion Design -
Standard on every insertion flow meter, this feature allows for insertion and removal by hand
without a system shutdown.
Ideal Solution for Retrofits -
The innovative hot tap adapter design allows for wet tapping pipes without interrupting flow.


GENERAL SPECIFICATIONS

ACCURACY
± 1.0% of reading from 2 - 20 ft/s
± 0.02 ft/s below 2 ft/s
FLOW RANGE
0.1 ft/s to 20 ft/s (200:1 turndown)
SENSING METHOD
Electromagnetic sensing (no moving parts)
PIPE SIZE RANGE
Standard Configuration: 3 - 72” nominal diameter
Small Pipe Configuration: 1¼ - 2½” nominal diameter
INPUT POWER
20 - 28 VDC, 250 mA at 24 VDC
20 - 28 VAC, 60 Hz, 6 VA
LIQUID TEMPERATURE RANGE
15° to 250° F
AMBIENT TEMPERATURE RANGE
-20° to 150° F
OPERATING PRESSURE
400 psi maximum
PRESSURE DROP
Standard Configuration: 0.1 psi at 12 ft/s in 3” pipe, decreasing as line size increases
Small Pipe Configuration: 0.33 psi at 8 ft/s in 1.25” pipe, decreasing as the line size increases
OUTPUT SIGNALS PROVIDED
Analog Output (Isolated)
Selectable: 4-20 mA, 0-10 V or 0-5 V
Frequency Output
0-15 V peak pulse, 0-500 Hz
Scalable Pulse Output
Isolated solid state dry contact
Contact rating: 50 VDC, 100 mA maximum
Pulse Duration: 0.5, 1, 2 or 6 seconds
MATERIAL
Wetted metal components: 316 Stainless Steel
Sensor head: XAREC
Optional: NSF/ANSI 61/372 version
ELECTRONICS ENCLOSURE
Weathertight NEMA 4 aluminum enclosure
ELECTRICAL CONNECTIONS
10’ of PVC jacketed cable with ½” NPT conduit connection
Dedicated earth wire required
4-wire minimum for power and analog output
Additional wires required for pulse, frequency and alarm outputs


OPERATING RANGE FOR COMMON PIPE SIZES
0.1 to 20 ft/s
Pipe Size (inches)
Flow Rate (GPM)
1 ½
0.6
-
130
2
1.0
-
200
2 ½
1.1
-
230
3
2.4
-
460
4
4
-
800
6
9
-
1,800
8
16
-
3,100
10
24
-
4,900
12
35
-
7,050
14
42
-
8,600
16
55
-
11,400
18
70
-
14,600
20
86
-
18,100
24
125
-
26,500
30
223
-
41,900
36
304
-
60,900



Referensi : https://www.onicon.com/products/f-3500-series-insertion-electromagnetic-flow-meter/
