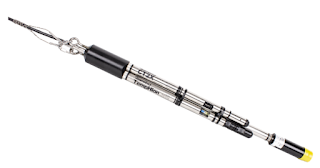

Seametrics Multi Parameter Smart Sensor With Data Logging

Feature

• 5 Standard configuration to measures pH, ORP, temperature, conductivity, salinity, TDS, pressure level, and dissolved oxygen or turbidity (depending on configuration)
• Modbus® and SDI-12 interface
• Real-time viewing
• Integrated data logger
• Wireless connectivity — radios and/or cellular

This single unit can do the work of six sensors—all at the same time. Available in a variety of configurations to fit your needs. To make your work even simpler, this sensor comes standard with both SDI-12 and Modbus interfaces, an integrated datalogger, as well as wireless connectivity for cellular modems.

Configuration

	Option 1 P/N 2L31000		Option 2 P/N 2L31006	Option 3 P/N 2L31004	Option 4 P/N 2L31002	Option 5 P/N 2L31008
Level / Pressure	√	√		√	√	√
Conductivity / Salinity / TDS	√	√		√	√	√
pH / ORP				√	√	√
Dissolved Oxygen	√				√
Turbidity		√		√
Temperature	√	√		√	√	√

Specification

Adapter

Material: Acetal
Strain relief: Included

Sensor Tube

Tube Material: 316 stainless steel or titanium
Wire Seal Materials: Fluoropolymer and PTFE

Cable

OD: 0.28” (0.7 cm) maximum
Break Strength: 138 lbs. (62.7 kg)
Maximum Length: 2000 feet (610 meters)
Weight: 4 lbs. per 100 feet (1.8 kg / 30 m)

Communication

Communication: RS485 Modbus RTU & SDI-12 (ver.1.3)
Direct Modbus Read Output: 32-bit IEEE floating-point
SDI-12 Output: ASCII
Internal Math: 32-bit floating-point

Power

External 12 VDC nominal / 9-15VDC range

Range, Resolution, and Accuracy Of Sensor Please Check Datasheet

Datasheet: Seametrics Multi-Parameter
