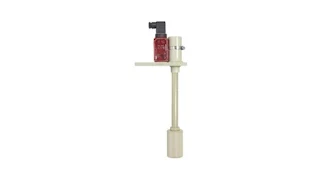

Bamo Level Controller SECURICUVE

 Bamo Level Controller SECURICUVE

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centering on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader in the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own product range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Bamo Level Controller SECURICUVE | Descripitons

Afloat at the bottom of a stem moves a magnet inside the head housing. The fluid maintains the equipment (float, stem, and magnet) in the highest position ''a'' (normal status). When the fluid level is going down, the equipment comes in the lowest position, down to block on stopper, position ''b''. The switch BSM changes from normal status to alarm status. To test the complete system, it is sufficient to push down the float to the lowest position or by draining part of the container. For a safe operating condition, it would be better to test regularly the complete system.

Features

• Lack of liquid detection (a drop of level)
• Positive active detection
• Compact
• Easy to test its integrity on site
• Material: Or PPH or PVDF

Application

• Level drop detection in tanks of surface-treating process
• Protection against overheating following evaporation or tank leaking, or default on chemical refilling


Specification

Float, stem, bracket, head	Or PPH, or PVDF
Temperature max.	PPH = 105 °C / PVDF = 140 °C
Pressure	Atmospheric
Fitting	Bracket in PPH or PVDF, 60x150 mm, 10 mm thick
CONTACT BSM 501 (not included)
Rated voltage	4...250VAC;4V...30VDC
Rated current	1 mA ... 3 A (AC or DC)
Switch	Microswitch bi-stable, change-over
Connector	Plug according DIN 43650
Cable	Cross section 1,5 mm² max.
Cable gland	PG 13.5
Ambient temperature	-20 ... +90 °C
Housing	Translucent polycarbonate, IP 65

Ref: bamo.eu

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Data Sheet: Level Controller SECURICUVE
