Bamo Level Dry Run Protection CAPSYTRON TLS

 Level Dry Run Protection CAPSYTRON TLS

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

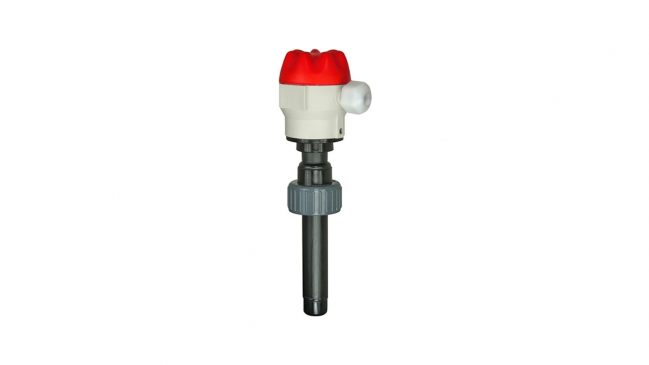

Level Dry Run Protection CAPSYTRON TLS

The CAPSYTRON TLS is designed for empty tube detection. It avoids hammer effects when filling a tank. It is designed to detect the presence of liquids whose reactance is <5 kOhm, or even whose coupling capacity to earth is >50 pF. In no case should liquids form insulating or conductive deposits.

Features

• Wet parts in plastic materials
• Compact probe
• Plug for function test
• Switches when pipe is empty
• No moving parts

Application

• Protection against dry run; Detection of empty filling pipe
• Prevents hammer effects when air is compressed in the pipe.


Specification

Power supply	15 ... 27 V DC
Consumption	< 1 W
Output	Potential free Reed contact
	N.C. with liquid; N.O. without liquid (in air)
	Rated: Max. 50 V AC / DC; Max. 0.5 A; Max. 10 VA for PLC
	connection or coupling relay
Connector	Screw terminals, IP 20, cable Max. 2.5 mm²
Additional function	Connection to an external test button, with which the whole
	electronics, wiring and signaling device can be tested.
Probe	Or PE, or PP
Length	Min. 95 mm
Fitting	Union nut BSP 1'', includes EPDM o-ring
Ambient temperature	-20 ... +60 °C
Pressure limit	2 bar
Housing terminal	PBT, IP 65 acc. EN 60529

Download Data Sheet: Level Dry Run Protection CAPSYTRON TLS
