Bamo Magnetic Level Controllers MNR 7

Bamo Magnetic Level Controllers MNR 7

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

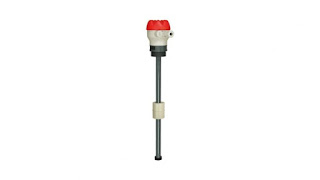

Magnetic Level Controllers MNR 7

The Reed contacts (up to 4) inside the stem, are actuated directly by the magnet float. Wet parts (stem and float) to choose between: or PVC & PP, or PP, or PVDF.

Quick commissioning:

  • Distance of each contact from sealing surface is fixed (requested on P.O.): No adjustment requested on site to guarantee the exact positioning of contacts.
  • The PP float passes through the BSP 2'' fitting without dismantling the MNR.
  • At the stem bottom a nut limits the float movement: By unscrewing it, the float may be removed. Note: It is recommended to provide the optional flange ND100 to allow the PVDF float to pass through the fitting.

Recommendations:

The use of a relay ES2001 will protect the Reed contact and increase its switching power and lifetime.

Features

  • Versions in: PVC, PP or PVDF
  • 1 to 4 level changeover contacts
  • Fitting 2'' for standard models
  • No effects of foam, neither of vapours
  • Measuring height: up to 2500 mm

Application

Level controllers for liquids, even aggressive ones, not viscous, not clogging and free of suspended solid particles.

Another Article:

Specification

Height of stemMin. 250 mm / Max. 2,500 mm
Liquid densityMin = 0.75
TemperaturePVC: 0 ... +60 °C
 PP: 0 ... +80 °C
 PVDF: 0 ... +110 °C
Pressure limitMax. 1 bar at 20 °C

Materials:


Stem and fittingPVC, PPH or PVDF
FloatPPH or PVDF
Head housingPBT, glass fiber reinforced, IP65

Contacts:


Number1 to 4 bistable change-over contacts
Switching power60VA/220V/0.5A
ConnectionsScrew terminals
 Cable gland M20 x1.5 (for cable Ø 5 ... 9)
Shortest gap100 mm between 2 contacts
Accuracy± 2 mm
Hysteresis8 mm

Fittings:


StandardBSP 2''
OptionFlange ND 100 or BSP 1''

Download Data Sheet: Magnetic Level Controllers MNR 7

Ref: bamo.eu
