Bamo Pressure Relief Valves V 186 - V 86




Bamo Pressure Relief Valves V 186 - V 86


Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

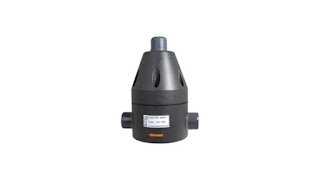

Pressure Relief Valves V 186 - V 86

The V186 & V86 valves can be used as pressure relief valve when mounted as a bypass to drain: the valve opens when the pressure is over the set value. When fitted in-line the valve works as pressure retaining valve: the outlet pressure remains at a minimum value. The choice of materials allows the use with a large field of chemicals. Versions with unions or flanges: On request.

Features

  • Body in PVC, PP or PVDF
  • Diaphragm: in EPDM with PTFE coat
  • V186: Spigot ends from ND 10 up to ND 50
  • V 18 : Spigot ends from ND 65 up to ND 100

Application

To protect pumps and pipings

Another Article:

Specification

BodyPVC, PP or PVDF
Temperature limitsPVC: 0 ... +60 °C
 PP: -10 ... +80 °C
 PVDF: -20 ... +100 °C
DiaphragmEPDM, coated with PTFE
Model V186From ND 10 up to ND 50
 PN 10
 Setting: Between 0.5 and 10 bar
Model V86From ND 65 up to ND 100
 PN 6 for ND 65 and ND 80
 PN 4 for ND 100
 Setting: Between 1 and 6 bar for ND 65 and ND 80
 Setting: Between 1 and 4 bar for ND 100

Download Data Sheet: Pressure Relief Valves V 186 - V 86

Ref: bamo.eu
