Bamo Water-Meter in Plastic M 25 – M 40

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

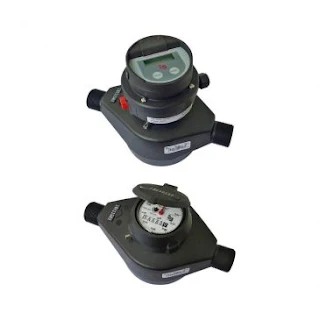

Water-Meter in Plastic M 25 – M 40

M25 and M40 are volumetric counters, suitable for totalization of clean or slightly dirty liquids. A grid located at the inlet, protects the measuring chamber from possible introduction of particles.

Operation:

Lower and upper parts of measuring chamber are spherical in shape. Inside the chamber is the disc, which is set in motion by the liquid. The flow causes an oscillating movement of the disc, opening and closing alternately the inlet and outlet orifices of the measurement chamber. The frequency of disc oscillations is magnetically transmitted to the totalizer.

Commissioning

The water-meter must be installed on a horizontal pipe, full of liquid.

Displays and remote signals (3 possibilities):

• Totalizer: 6 reading rollers
• Emitting head (1 or 10 pulses per liter) without display
• Emitting head (1 or 10 pulses per liter) without display LCD (Reset function by REED contact - Max. 20 Hz - 24 V - 50 mA)

Accessories :

BCP 48: Counter/ down counter

Features:

• Water-meter, oscillating disc
• Body in nylon
• Ranges from 0.5 to 160 l/min
• Watertight measuring chamber

Application:

These water-meters are suitable for totalization of clean or slightly dirty liquids, raw water or demineralized water.

Specification:

Flow ranges	M25: 1 to 100 l/min
	M40: 2 to 160 l/min
Viscosity	500 cPo
Nominal pressure	PN 16
Temperature	Max. 50 °C
Accuracy	±1.5%

Download Data Sheet: Water-Meter in Plastic M 25 – M 40
