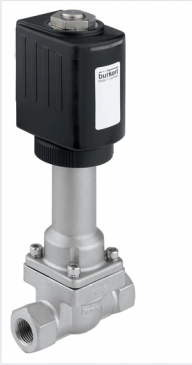

Burkert Type 6026 2/2-way Plunger Valve











The valve 6026 is a direct-acting, media-separated 2/2-way plunger valve. The thermal and hermetic isolation of the coil and body by means of stainless steel bellows allows both extreme medium temperatures as well as aggressive media. This design avoids the build-up of condensation between the fluid part and coil or an unacceptable heating up or freezing of the coil. The coils are moulded with chemically resistant epoxy. The valve is therefore particularly suitable for applications with critical media. The use of highly resistant body and seal materials such as stainless steel and PTFE make the valve suitable for critical chemical applications. The valve is supplied with a coil equipped with “Kick and Drop” (KD) electronics featuring double coil technology. In combination with a plug to DIN EN 175301 - 803 Form A, the valves satisfy degree of protection IP65. This product can be combined with Cable Plug Type 2518.

Features

Specifications

Technical Data

Product properties

DimensionsDetailed information can be found in chapter “3. Dimensions” on page 4 of datasheet
Materials
SeaPTFE
Body

Brass with stainless steel seat 1.4581

Stainless steel with stainless steel seat 1.4581

Metal bellowsStainless steel 1.4541
Weight1.1 kg

Performance data

Duty cycleContinuous operation 100% ED Intermittent operation 50% ED max. 6 switchings/minute

Electrical data

Operating voltage

24 UC

110…120 V/50…60 Hz 230…240 V/50…60 Hz

Voltage toleranceMax. ±10%
Power consumption85/8 W

Medium data

Medium temperature-200 °C…+180 °C
Operating mediumNeutral gases and fluidics
ViscosityCa. 21 mm2 /s

Approvals and certificates

Protection classIP65 with cable plug

Process/Port connection & communication

Electrical connection

Tag connector acc. to DIN EN 175 301-803 Form A

(see “5.4. Ordering chart accessories” on page 7 of datasheet)

Environment and installation

Installation positionAs required, preferably with actuator upright
Ambient temperature (max.)+55 °C

Power Consumption

OrificeKV value waterPressure rangePower consumptionResponse times
[mm][m3 /h][bar]Inrush [W]Hold [W]Opening [ms]Closing [ms]
3.00.250…10858100…200300…500
4.00.500…10
5.00.650…10
6.00.800…10
8.00.900…10
10.01.500…5
12.01.800…3

Download Datasheet: Burkert Type 6026 2/2-way Plunger Valve

Reference : burkert-usa.com
