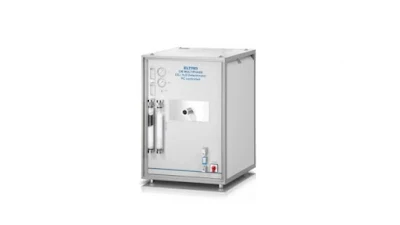

Eltra Carbon / Water Analyzer CW-800M

Eltra Carbon / Water Analyzer CW-800M


ELTRA's CW-800M analyzer is designed for fractional analysis of carbon and water in one single operation. It is based on the proven technology of the CW-800 but has a modified furnace that allows fast adjustment of the temperature in the furnace. Different fractions of carbon and water of the sample are analyzed by applying different furnace temperatures.

ELTRA's CW-800M analyzer is designed for the precise, simultaneous determination of carbon (released as CO2) and water in lime, gypsum, and cement from trace level up to 100 % (depending on sample weight). Other sample materials include ores, soil, minerals, slags, and waste. Up to five temperature steps (“ramps”) can be programmed for each application. The temperature levels and their duration are selectable. The maximum temperature is 1000°C. Depending on the application step, either O2 can be used as a furnace atmosphere (oxidation of the sample) or an inert gas like N2 or argon.

Eltra Carbon / Water Analyzer CW-800M | Descriptions

The detection system of ELTRA's CW-800M is very sensitive, reliable, and guarantees a long lifetime. It can be customized according to the user's requirements. Two infrared cells can be combined independently and allow highly precise measurement of the released CO2 and H2O.

Advantages

  • Simultaneous carbon dioxide and water determination with minimal sample preparation
  • Analysis of TOC (total organic carbon) and tic (total inorganic carbon) without adding acids
  • Rapid, precise, accurate, and reliable element determination
  • A wide range of materials can be analyzed
  • Resistance furnace temperature can be set up to 1000 °c in steps of 1 °c
  • Up to 5 programmable steps with different temperatures ("ramps") can be defined
  • Customized infrared cells provide a wide, dynamic measuring range
  • Due to gold ir path, increased cell live time for analysis of halogen or acid-containing samples
  • Powerful software (multilingual, customized display, the export of results)
  • Single and multi-point calibration
  • No halogen trap required
  • Electronic gas flow control
  • Low maintenance
  • The robust design allows usage in production control and laboratory

Application

Cement, Gypsum, Limestone, Minerals, Ores, Slag, Soil, Waste

Another Article:

Specification

Measured elementscarbon dioxide, water
Furnace alignmenthorizontal
Sample carrierquartz boats
Field of applicationagriculture, biology, chemistry /
 plastics, construction materials,
 environment / recycling, geology /
 mining, others
Furnaceresistance furnace with quartz tube,
 adjustable up to 1000 °C
Catalyst furnace+
Process of measurementtemperature and carrier gas can be
 changed during measurement
 according to a user-defined program
Detection methodsolid state infrared absorption
Number of IR cells1 - 2
Material of IR pathgold
Typical analysis time5 - 20 min (depending on program)
Chemicals requiredcopper oxide, magnesium
 perchlorate, sodium hydroxide
Gas requirednitrogen 99.995 % pure (2 - 4 bar /
 30 - 60 psi) oxygen 99.995 % pure
 (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 Hz, max. 10 A, 2300 W
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 65 kg
Required equipmentbalance (resolution 0.0001g),
 monitor, PC
Optional accessoriesTIC module, voltage stabilizer 5 KVA

Ref: eltra.com

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Data Sheet: Carbon / Water Analyzer CW-800M
