Hengstler Preset Counter Tico 773

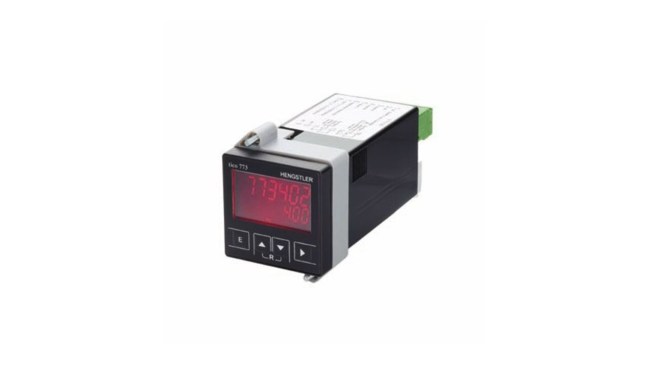

Preset Counter Tico 773[/caption]

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters through to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers and timers. Totalizing counters tend to be used to register the number of events and display the result as a digital numerical value. The key characteristics of this versatile range of products, as you would expect from any HENGSTLER product, are state-of-the-art technology, appealing design, quality and reliability. Examples of typical applications: Production counting, recording flow volumes.

The members of this product family are really multitalented, feature up to three presets and can be connected up using plug-and-play connectors. They allow very high counting frequencies of up to 60 kilohertz and are universally suitable for use as pulse-counters, tachometers, timers, shift or batch counters. The large multi-coloured 6-digit display is backlit and easy to read. The flexibility of the programming levels offered by this multifunctional counter allow it to be used as a preset counter and, if required, with many programmable functions. Additional functionality offered by the USB interface facilitates quick, easy programming on the PC and enables the devices to communicate with a computer.

Features

• Very simple operation
• Four different backlighting colours
• Large, easily read display
• Counting frequency up to 60 kHz
• Prescaler 0.0001 - 99.9999
• USB Interface
• Programming assistant (Windows XP 32 bit, Windows Vista 32 bit, Windows 7 32 bit)

Another Article: Bamo Level Controller with Stop Valve VALFO TE CD1050 Dynamic Rotary Torquemeter KOMAX TRIPLE ACTION STATIC MIXER SXL BEARINGS AND SEALS Flexible Metal Hose HELS

Specification

Product Family	tico 773
Function	Preset counter
Technology	Electronic
Digits	6-digit
Display	6-digit
	2-line
	counting display/presets
	leading zero suppression
	decimal point (up to 4 places)
Preset	3 presets
Interface	USB interface
Digit Height [mm]	1. Line 9.3 mm (0.4 in)
	2. Line 7.2 mm (0.3 in)
Display Variant	reflective LCD
	transflective positive LCD, black digits, backlit
	transmissive negative LCD, white digits, red or green backlit, background black
View Angle	12:00
Relay	1 or 2 relays
Counter Mode Input A,B	Single channel add or sub, directional input,
	differential operation add / sub, totalizing operation add / add,
	phase discriminator 1-, 2- or 4-fold evaluation
Preselect Modes	absolute or trailing preset
	range signal/value limit (Sign. 1 < VW1
	Sign. 2> VW2)
Application Input/Output (Counter)	Output: prescaler-out
	preset 0-out
	direction-out
	input: additional counter input add / sub
	reset
	set
	gate
	keylock
	hold
	teach in
Mode	batch counter with preset or 2. totalizing counter with preset
Count Mode	differential operation add/sub
	totalizing operation add/add
Size [mm]	48x48x118
Mounting Options	Clamping frame
Mounting	with clamping frame
Reset	manual reset using keypad
	external reset static or dynamic
	pulse duration min. 5 ms
	automatic reset after preset 2 has been reached
	no loss of pulse at the maximum counting frequency due to automatic resetting. programmable using application input and power-up reset
Weight [g]	approx. 200 g (3.2 oz)
Dimensions [mm]	48 mm x 48 mm x 118 mm (1.9x1.9x4.6 in), installation depth 110 mm (4.4 in), DIN 43 700
Panel Thickness [mm]	max. 11 mm

Download Data Sheet: Preset Counter Tico 773
