Hengstler Time Counter Tico 773

Hengstler Time Counter Tico 773

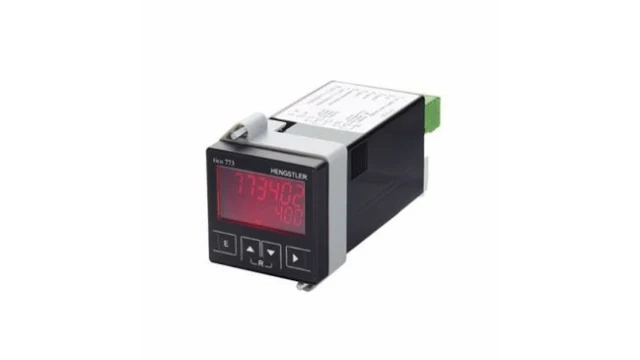

Time Counter Tico 773[/caption]

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters through to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers and timers. Time counters display the duty cycle of installations, machines and appliances. They provide information on the expiry times of warranty periods, hours of use and the countdown to the next scheduled maintenance work. For use in time-dependent controllers, we also have a series of preset time counters in our product range. As a further complement, we can provide a series of time counters that offer versatile configuration options in an attractive, state-of-the-art design. Examples of typical applications: Maintenance interval counters, control of mixing quantities.

The members of this product family are really multitalented, feature up to three presets and can be connected up using plug-and-play connectors. They allow very high counting frequencies of up to 60 kilohertz and are universally suitable for use as pulse-counters, tachometers, timers, shift or batch counters. The large multi-coloured 6-digit display is backlit and easy to read. The flexibility of the programming levels offered by this multifunctional counter allows it to be used as a timer and, if required, with many programmable functions. Additional functionality offered by the USB interface facilitates quick, easy programming on the PC and enables the devices to communicate with a computer.

Features

  • Very simple operation
  • Four different backlighting colours
  • Large, easily read display
  • Counting frequency up to 60 kHz
  • Three presets
  • Prescaler 0.0001 - 99.9999
  • USB Interface
  • Programming assistant (Windows XP 32 bit, Windows Vista 32 bit, Windows 7 32 bit)

Another Article:

Specification

Product Familytico 773
FunctionTime counter
TechnologyElectronic
Digits6-digit
Display6-digit
 2-line
 counting display/presets
 leading zero suppression
 decimal point (up to 4 places)
Preset3 presets
InterfaceUSB interface
Digit Height [mm]1. Line 9.3 mm (0.4 in)
 2. Line 7.2 mm (0.3 in)
Display Variantreflective LCD
 transflective positive LCD, black digits, backlit
 transmissive negative LCD, white digits, red or green backlit, background black
View Angle12:00
Relay1 or 2 relays
Time Base (Tachometer)programmable, sec
 min
 h or hh.mm.ss
Measuring Principle (timer)pulse width or period duration measurement (start-stop)
 start Inp. A + Stop Inp. B,
 Start/Stop button
Function Time CounterSingle pulse measurement or cumulative measurement
Application Input/Output (Timer)Output: preset 0-out
 input: additional Run
 Stop
 Reset
 Set
 Keylock
 Teach in
Accuracy of the TimerTime base. ± 30 ppm
 Start / Stop time point: 16 µs / 16 ms (unattenuated / attenuated)
 resolution: 100 µs = 100 ppm
Overall Tolerance (Timer)= display resolution + tolerance time base = 130 ppm
Resolution1, 0.1, 0.01, 0.001, 0.0001

Download Data Sheet: Time Counter Tico 773

Ref: hengstler.de
