Hengstler Totalizing Counter 464-468



Hengstler Totalizing Counter 464-468

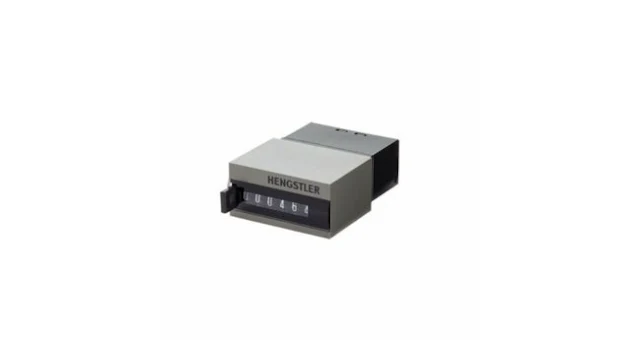

Totalizing Counter 464-468[/caption]

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters through to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers and timers. Totalizing counters tend to be used to register the number of events and display the result as a digital numerical value. The key characteristics of this versatile range of products, as you would expect from any HENGSTLER product, are state-of-the-art technology, appealing design, quality and reliability. Examples of typical applications: Production counting, recording flow volumes.

Type 464-468 is available as various variants with 4, 6, or 8-digit display. The device is available without a reset, or with a manual or electric reset option. The electro-mechanical totalizing counter stands out because of its user-friendly design. It is a plug-and-play device and can easily be combined with other counters in the modular 400 series.

Features

  • Display 4, 6, or 8 digits
  • Manual or electric reset or without reset
  • Simple installation
  • Service-friendly plug-in design
  • Can be combined with other counters in modular device series

Another Article:

Specification

Product Family464-468
FunctionTotalizing counter
TechnologyElectromechanical
Digits4-digit
 6-digit
 8-digit
Display4-digit
 6-digit
 8-digit
Presetnone
Digit Height [mm]4 mm (0.2 in)
Voltage12 - 220 VDC
 24 - 230 VAC
Resetmanual reset
 electrical reset
 without reset
 lockable reset
Duty Cycle at 25 °CDC: counter 10 %, reset magent: 10 %, max. 2 min.
 AC: counter 100%, Reset magnet: 10 %, max. 1 min
Power ConsumptionDC: counter 2.5 W, reset magnet 12 W
 AC: counter 2.75 VA, reset magnet 16 VA
Pulse Length min.DC: counter 20 ms, reset magnet 200 ms
 AC: counter 50 ms
 reset magnet 200 ms
Supply Voltage12, 20, 24, 48, 60, 110, 190, 220 VDC
 24, 42, 100, 115, 200, 230 VAC
Count Frequency [Hz]DC: counter 25 Hz, reset magnet 1 per s
 AC: counter 10 Hz, reset magnet 1 per 2 s
Count Inputadding
Pulse Duty Factor Count ImpulseDC: counter 1:1, reset magnet: 1:5
 AC: counter 1:1, reset magnet: 1:10
Electrical ConnectionAMP connector plug 0.8 x 2.8 mm (0.3 x 1.1 in) (via connection box)
Maintenance-Free operationcounter 2 x 10 pulses
 reset magnet 1.5 x 10? pulses
IP Protection ClassIP 40
Operating Temperature [°C]- 10 ... + 50 °C (+ 14 ... 122 °F)
Storage Temperature [°C]- 20 ... + 70 °C (+ 14 ... 122 °F)
Degree of Protectionfront IP 40, connections IP 00
General DesignEN 61 010-1 / IEC 61010-1
ApprovalsUL: E 349078
Vibration Resistance50 m/s2 (164 ft/s2) acc. IEC 068-2-6
Shock Resistance600 m/s2 (1969 ft/s2) (6 ms) acc.IEC 068-2-27
Protection ClassII, EN 61010-1 / IEC 61010-1
Contamination LevelV 2
 EN 50178
Size [mm]25x50x76
Mounting OptionsModular system 400
MountingCan be combined in modular system 400
Resetmanual reset
 electrical reset
 without reset
 key reset
Weight [g]approx. 90 g (3.2 oz)
Mounting Positionhorizontal rolling axis

Download Data Sheet: Totalizing Counter 464-468
