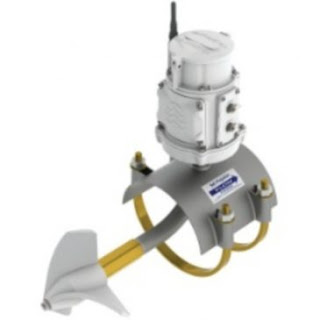

McCROMETER FlowConnect



McCROMETER FlowConnect


FlowConnect™ is a built-in solution for collecting and transmitting flow data from McCrometer’s Mc Propeller® and Water Specialties Propeller meters, automating data collection to provide accurate and reliable information for water resource management.

FlowConnect features ExactRead™ Technology for exact match from meter to website. ExactRead samples the digital register directly for its totalizer value, so the numbers are guaranteed to match.

FlowConnect supports water management objectives, including:

  • Billing & Accounting
  • Conservation
  • Regulations & Allocation
  • Planning & Development
  • Operations & Metering

Features

Benefits

Affordable and reliable remote meter reading

  • Streamlined design eliminates unnecessary components and costs
  • No external cables required
  • Aluminum enclosure with IP67 water-resistant rating
  • Withstands extreme temperature range, from -30° to +70°C (-22° to +158°F)

More frequent data for timely water management decisions

  • Regular and reliable data allows managers and staff to do more with less
  • Reporting intervals from daily to every 15-minutes
  • Easy access to data via web or mobile device

Simplified installation

  • One-piece design
  • No poles, mounting, or external cabling
  • Pre-assembled on new meters
  • Retrofits on existing meters in less than 30 minutes

Retrofits on existing metersin less than 30 minutes

Communications Options

  • Satellite
  • Cellular

Power Options:

  • Battery-Only
  • Rechargeable Solar Power

Applications

  • Billing and accounting
  • Conservation
  • Regulation and allocations
  • Planning and development
  • Operations and metering

Compatibility

  • Mc Propeller ‐ Mechanical and Digital Registers
  • Water Specialties Propeller ‐ Digital Register ONLY

     Another Article:

Specifications

Communication
Network TypeCellularSatellite
ProtocolsGSM/GPRSIridium
Operating Frequency (MHz)

824–849

869–894

1850–1910

1930–1990

1710–1755



1616-1626.5

AntennaExternal Bulkhead Extension TNC Antenna 800/1800/1900 MHzExternal Bulkhead Extension TNC Antenna 1,600 Mhz
Power
Batteries

Batteries can be replaced by user on-site

Battery Only: 2 Primary D‐Cells 3.6V 13Ah Rechargeable: 1 Primary D‐Cell 3.6V and 3 Secondary C-Cells, 1.2V in series

External Power

Requires Rechargeable Battery Configuration listed above.

Recommended 9‐12 VDC, 0‐1000mA Max: 14.5 VDC (Power supply or solar panel)

Recommended Battery Replacement IntervalBattery Only: 3 years (Daily Report Interval) Rechargeable: 4 years
Environmental
Operating Temperature‐ 30⁰C to 70⁰C (‐22⁰F to 158⁰F)

Electrical / Mechanical

Protection

All electrical components are grounded to fluid column and pipe. Manufactured in accordance with IP‐67 Standards and ESD‐safe
Environmental Protection

Ingress Protection (Dust Tight / Water Tight) to IP67 Vibration proof while operating:

Validated Vibration and 20G Sinusoidal testing to JEDEC 22B103B Section 4.3, Table 3, Service Condition C, for all axis and 20G sin sweep 20 ‐ 2,000Hz for all axis.

Tamper ProtectionFactory installed tamper-evident wire lock system

Other Characteristics
MountingTop Plate compatible with any McCrometer Propeller or Water Specialties (Digital Register Only)
External InterfaceFive‐pin serial‐USB cable
Flow IndicatorDigital Register or McPropeller Mechanical Register
Operating Temperature‐ 30⁰C to 70⁰C (‐22⁰F to 158⁰F)
InputsTwo analog sensors, 1 pulse accumulator (for rain gauge)
Outputs

Mechanical Register: None

Digital Register: 4‐20 mA, Open Collector Pulse, Dry Contact Pulse, Optically Isolated Pulse (via 5‐ pin output cable)

Data Collection Method

Digital Register: Serial interface between FlowConnect and digital register allows FlowConnect to read totalizer and rate value directly. No pulse counting required and always a perfect match.

Mechanical Register (McPropeller only): Pulse counter and high-low digital signal for forward‐reverse pulses. Accuracy between meter and Web totalizer: ±0.25%

Data StorageCapable of storing up to 1,000 reports in local memory

Accessories
Optional Protective CoverGray boot cover, p/n TOB065
Serial Accessories200.720.542 serial‐USB cable
Power AccessoriesRechargeable:            200.723.520 2.5W 220mA Solar Panel 200.733.522 5W 540 mA Solar Panel 200.720.523 115V Power Supply Battery Only: No Power Accessories
Sensor Accessories

Adcon PA1 Cables ‐ Pressure 10bar 500.000.120 ‐ 16 ft. Cable 500.000.119 ‐ 32 ft. Cable

200.733.048 ‐ RGI Rain Gauge 200

200.720.510 ‐ Y Cable

200.733.902 ‐ A902 1/2/3 Cable

Communication AccessoriesCellularSatellite
 900.000.590 TNC Rigid Antenna (Included) 900.000.565 Directional Antenna 900.000.567 Extension AntennaTOB039  Helical  Antenna  (Included) MCC‐510‐AI‐A Extension Antenna, Magnet Mount

Dimensions
Network TypeCellularSatellite
Unit Enclosure SizeW x D x HW x D x H
Non-Rechargeable6.5" x 5.6" x 9.9"6.5" x 5.6" x 9.8"
Rechargeable6.5" x 6.1" x 9.9"6.5" x 6.1" x 9.8"
Packaged Dimensions11" x 11" x 11"11" x 11" x 11"
Packaged Weight6 lbs.6 lbs.
