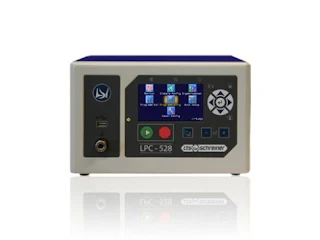

Schreiner LPC 528 Schreiner LPC 528 | Specifications  The LPC 528 makes a unique auto test setup possible. The communication via RS232, USB, Ethernet, and ProfiNET includes parameters, results, counters, and statistics at baud rates up to 115,200 for RS232. The LPC 528 is characterized by excellent measuring accuracy, simple intuitive operation, and durability.  Unique auto test setup Multilingual software ProfiNET, RS232, Ethernet Color graphic display Intuitive user interface Compact modular design Self-test diagnostics verification  Description  High speed 32 bit processor 32 freely programmable measuring programs RS232, TCP/IP (Telnet), EtherNet/IP™ and PROFINET a communication interfaces External calibration port for automatic calibration routine using calibrated leak standard Environmental drift correction Data collection & storage of up to 5,000 test results Real-time data transmission (0.05 seconds) via RS232 High resolution 24 bit A/D converter Versatile test capabilities including pressure/vacuum decay, differential pressure decay, and occlusion Multi-level password protection Quick test function to reduce cycle times Self-test functions: internal pneumatic leak check, calibration test, transducer zero and span calibration, test regulator adjustment       Another Article:  Programmable Control Unit PCU–100, Dinel-Level and Flow Measurement programmable display unit PDU–401–P, Dinel-Level and Flow Measurement DigaLink™ 3.0 E-mail Alerts, Configuration & Monitoring Software, Flocorp-Monitor DigaCom 2000™ DCX2 Digital Process Meter, Flocorp-Monitor CONNEX 3D™ CD3D Flexible Process Meter, Flocorp-Monitor Technical Specifications Housing (WxHxD)	  270 x 170 x 260 mm  (10.6 x 6.7 x 10.3 in)   Weight	6-7 kg (13.2-15.7 lbs) Rated Voltage Range	  120 V AC 1A /  230 V AC 0.5 A   Protection	IP30 Air Supply	  Air, nitrogen  Dried ISO 8573-1 Class 2 Compressed air dew point  -40 °C (-40 °F)  Filtered with min. 1 µm Up to 1 mg/m³ of oil   Operating Temperature Range	5-45° C (39.2-113 °F) Max. Humidity	80 % rH not condensing Power Supply (24 V optional)	M12 Connection 24 V max. 2 A Display Vivid, color LCD display with icon menu screen for easy navigation Bar graph test results, digital test results, test parameters, test counters, and test statistics Displays test specific units of measurement Test result lights for "In Test", "Accept", and "Reject" Language neutral keypad Interfaces Communication via RS232, USB, TCP/IP (Telnet), EtherNet/IP™, and PROFINET Tooling control for simple applications Digital I/O - 6 inputs/3 outputs independently set per part program Accessories Calibrated test leak and leak simulator Vacuum pump Filter kit CTS-Schreiner Connect® Seals Options Differential pressure or pressure decay manifold Electronic or manual pressure regulator Externally mounted calibrated leak standard Selectable pressure packages Selectable transducer ranges PROFINET communication interface EtherNet/IP communication Test Capabilities Pressure/vacuum decay - ∆P Pressure/vacuum decay - ∆P/∆T Pressure/vacuum decay - leak standard Differential Pressure Decay (∆P) Differential Pressure Decay Leak Rate (DP Test Type Only) Differential Pressure Decay Leak Standard Occlusion (Back pressure) Measuring ranges  	     Pressure Decay  	     Vacuum Decay  	Differential Pressure Decay	Differential Vacuum Decay Test Pressure Range	0 to 13.8 bar (gauge)	-1 to 0 bar (gauge)	0 to 13.8 bar (gauge)	-1 to 0 bar (gauge)   Test Pressure Control  Accuracy  	1.5 % FS	1.5 % FS	1.5 % FS	1.5 % FS Measuring Range	-1 to 13.8 bar (gauge)	  -1 to 0.4 bar  (gauge)  	0 to 0.345 bar (differential)	0 to 0.345 bar (differential) Measuring Accuracy	± 0.4 % FS	± 0.4 % FS	± 0.006 % FS	± 0.006 % FS Resolution	  < 6.8 bar: 0.1 Pa  < 13.8 bar: 1 Pa  	0.1 Pa	0.007 Pa	0.007 Pa  Reference : schreiner-testing.com  Contact us : sales@wmablog.com or visit to our E-Commerce  Download Datasheet : Schreiner LPC 528



Schreiner LPC 528

Schreiner LPC 528 | Specifications

The LPC 528 makes a unique auto test setup possible. The communication via RS232, USB, Ethernet, and ProfiNET includes parameters, results, counters, and statistics at baud rates up to 115,200 for RS232. The LPC 528 is characterized by excellent measuring accuracy, simple intuitive operation, and durability.

  • Unique auto test setup
  • Multilingual software
  • ProfiNET, RS232, Ethernet
  • Color graphic display
  • Intuitive user interface
  • Compact modular design
  • Self-test diagnostics verification

Description

  • High speed 32 bit processor
  • 32 freely programmable measuring programs
  • RS232, TCP/IP (Telnet), EtherNet/IP™ and PROFINET a communication interfaces
  • External calibration port for automatic calibration routine using calibrated leak standard
  • Environmental drift correction
  • Data collection & storage of up to 5,000 test results
  • Real-time data transmission (0.05 seconds) via RS232
  • High resolution 24 bit A/D converter
  • Versatile test capabilities including pressure/vacuum decay, differential pressure decay, and occlusion
  • Multi-level password protection
  • Quick test function to reduce cycle times
  • Self-test functions: internal pneumatic leak check, calibration test, transducer zero and span calibration, test regulator adjustment

Technical Specifications

Housing (WxHxD)

270 x 170 x 260 mm

(10.6 x 6.7 x 10.3 in)

Weight6-7 kg (13.2-15.7 lbs)
Rated Voltage Range

120 V AC 1A /

230 V AC 0.5 A

ProtectionIP30
Air Supply

Air, nitrogen

Dried ISO 8573-1 Class 2 Compressed air dew point

-40 °C (-40 °F)

Filtered with min. 1 µm Up to 1 mg/m³ of oil

Operating Temperature Range5-45° C (39.2-113 °F)
Max. Humidity80 % rH not condensing
Power Supply (24 V optional)M12 Connection 24 V max. 2 A

Display

  • Vivid, color LCD display with icon menu screen for easy navigation
  • Bar graph test results, digital test results, test parameters, test counters, and test statistics
  • Displays test specific units of measurement
  • Test result lights for "In Test", "Accept", and "Reject"
  • Language neutral keypad

Interfaces

  • Communication via RS232, USB, TCP/IP (Telnet), EtherNet/IP™, and PROFINET
  • Tooling control for simple applications
  • Digital I/O - 6 inputs/3 outputs independently set per part program

Accessories

  • Calibrated test leak and leak simulator
  • Vacuum pump
  • Filter kit
  • CTS-Schreiner Connect® Seals

Options

  • Differential pressure or pressure decay manifold
  • Electronic or manual pressure regulator
  • Externally mounted calibrated leak standard
  • Selectable pressure packages
  • Selectable transducer ranges
  • PROFINET communication interface
  • EtherNet/IP communication

Test Capabilities

  • Pressure/vacuum decay - ∆P
  • Pressure/vacuum decay - ∆P/∆T
  • Pressure/vacuum decay - leak standard
  • Differential Pressure Decay (∆P)
  • Differential Pressure Decay Leak Rate (DP Test Type Only)
  • Differential Pressure Decay Leak Standard
  • Occlusion (Back pressure)

Measuring ranges





Pressure Decay



Vacuum Decay

Differential Pressure DecayDifferential Vacuum Decay
Test Pressure Range0 to 13.8 bar (gauge)-1 to 0 bar (gauge)0 to 13.8 bar (gauge)-1 to 0 bar (gauge)

Test Pressure Control

Accuracy

1.5 % FS1.5 % FS1.5 % FS1.5 % FS
Measuring Range-1 to 13.8 bar (gauge)

-1 to 0.4 bar

(gauge)

0 to 0.345 bar (differential)0 to 0.345 bar (differential)
Measuring Accuracy± 0.4 % FS± 0.4 % FS± 0.006 % FS± 0.006 % FS
Resolution

< 6.8 bar: 0.1 Pa

< 13.8 bar: 1 Pa

0.1 Pa0.007 Pa0.007 Pa

Reference : schreiner-testing.com

Contact us : sales@wmablog.com or visit to our E-Commerce

Download Datasheet : Schreiner LPC 528
