Bamo Vent Valves BV 91 - BV 95

Bamo Vent Valves BV 91 - BV 95

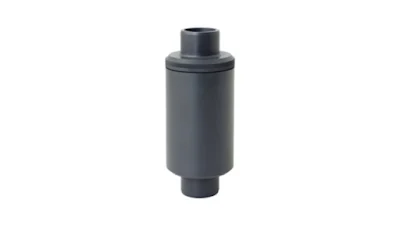

Vent Valves BV 91 - BV 95[/caption]

Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centring on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader on the French market.

Since 1990, new developments in the Level Measure have given a new spring in the export. To its own production range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.

Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

Vent Valves BV 91 - BV 95

Protection against vacuum, overpressure, overflow-spillage

Features

  • Air inlet and outlet controls
  • Body: PVC, PP or PVDF
  • From ND 10 up to ND 80
  • BV 91 free ball valve, for tank ventilation
  • BV 95 ball valve, spring assistance, for tank ventilation & vacuum breaking

Application

BV 91 and BV 95 - Overpressure protection

As the liquid fills the tank, the air or gas is compressed and pushes up the ball for exhaust. The tank is protected against overpressure while remaining watertight once the overpressure evacuated.

BV 95 - Protection against vacuum, overflow-spillage

When emptying a tank, the space occupied by the liquid creates a vacuum. As the atmospheric pressure is higher, this creates a phenomenon of air suction through the ventilation valve. This assembly can also protect the tank from overflow-spillage

BV 91 - Protection against vacuum, overpressure, overflow-spillage

The ventilation valve BV 91 lets air or gas flow in both directions protecting the tank against vacuum and overpressure. An excessive filling of the tank by the liquid will apply the ball on its seat thus avoiding an overflow-spillage.

BV 95

Warning: The opening pressure of these BV 95 cannot be exactly stated, the spring has a plastic coat so, its features are not constant. The opening pressure value could be between 0.04 and 0.13 bar, it depends of the valve size. However, these values are for information only, they depend of operating conditions.

Specification

BodyPVC, PP or PVDF
Operating temperaturePVC: 0 ... +60 °C
 PP: -10 ... +80 °C
 PVDF: -20 ... +100 °C
SealsFPM
BallPP for PVC & PP valves
 PVDF for PVDF valves
SpringSteel with PE coating (model BV 95)
FittingsSpigot ends (PVC: for solvent welding;
 PP & PVDF for fusion welding)

Download Data Sheet: Vent Valves BV 91 - BV 95
