Battery-Powered Flow Rate Transmitter RT-10 Series AW Lake

The RT-10 battery-powered local flow rate transmitter is ideal for any industry or flow measurement application where a local rate and total display is required and in locations where equipment is exposed to the elements. The unit includes a large, six-digit LCD display that continuously shows either the flow rate or total. Adjust rate, total, reset, sleep mode, or time in the field, and the unit’s battery lasts as long as four years.

Ideal for any industry or flow measurement application where a local rate and total display is required and in locations where equipment is exposed to the elements.

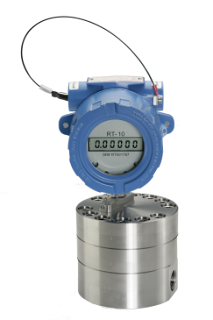

The battery-powered RT-10 has a large, six-digit LCD display that continuously shows either the flow rate or total in any engineering units. Program rate, total, reset, sleep mode, or time using buttons when the protective blue cover is open, or with a magnet wand when the cover is closed.

The unit’s battery lasts as long as four years and is replaceable on-site. A variety of sensor options make the RT-10 flow monitor compatible with most meters available from AW Gear Meters, including the JV and HPM series positive
displacement flow meters, and the TW, TRG and THM turbine meters. (Not compatible with the JVHS, JV-01, JV10 or JV-12 flow meters.) Options include a loop-powered 4-20 mA rate output, fiber-optic input, and a scaled fiber-optic frequency output

Features:

• Gate time function
• Real-time clock display
• Sleep mode conserves battery power
• 4-20mA loop power output
• “Sleep” and “Lo Battery” indicators
• Easy programming using Up, Down and Enter functions
• Fiber Optic input and output options

Application:

The RT-10 from AW Gear Meters includes a large, six-digit LCD display that continuously shows either the flow rate or total. Adjust rate, total, reset, sleep mode, or time using buttons when the protective blue cover is open, or with a magnet wand when the cover is closed. The unit’s battery lasts as long as four years and is replaceable on-site. This
monitor is compatible with most meters available from AW Gear Meters, including the JV and HPM series positive displacement flow meters.

Advantages:

• Options for Remote Indication: The RT-10 is available in a variety of models
• Extended Battery Life: To preserve the lithium battery, the device reverts to sleep mode after a user-specified period of time.
• Up & Running in Minutes: Simply attach your sensor to the RT-10, install sensor & flow monitor onto meter, power-up and input calibrations.
• Customizable Engineering Units: The unit displays Total and Rate values in userspecified engineering units, such as cc’s, ounces or gallons.

Another Article: Flow Rate Transmitter AW Lake Battery-Powered Flow Rate Transmitter RT-50 Series AW Lake Flow Rate Transmitter-EX & Non-EX RT-30 Series AW Lake VTG/VIG Kem Kuppers Local Displays Unit Smart Temperature Transmitter D72 Series Delta Mobrey

Specification:

• Flow Meter Compatibility: JV and HPM series positive displacement gear meters
• Power: Internal 3.6V “C” cell battery, field replaceable; 4 year battery power estimated average life, depending on options enabled.
• Sensor/Monitor Frequency Range: 3,000 Hz max.
• Temperature Rating: -20 to 60°C (-4 to 140°F) ambient, 80˚C (175˚F) maximum fluid temperature
• Output Options: 4-20 mA, loop powered
• Input Options: Standard sensor or fiber optic
• Rating (Enclosure only): NEMA 4X

Download Data Sheet: Battery-Powered Flow Rate Transmitter RT-10 Series
