Data Connectors Amphenol-Dante Adapters

 Amphoe-Dante is Dante™ audio to analog audio adapters, available for Input, Output, AES3, and USB applications. Featuring premium quality Amphenol AX series XLR and RJ45 connectors in a robust molded housing.

Amphoe-Dante products enable simple connection of analog equipment to a Dante network and can receive and transmit audio channels from a Dante network and provide studio-quality, low-latency audio via XLR connectors to and from analog audio equipment.

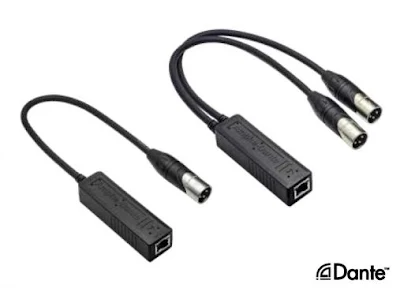

Data Connectors Amphe-Dante Adapters-Amphenol


Features:

  • Dante™to analog XLR output adapters
  • Line-level analog input to Dante™ audio output adapters
  • Dante™AES3 2 channel input/output adapters
  • Dante™USB input/output adapters
  • One channel or Two-channel analog input or output
  • Durable over-molded housing
  • Resilient cable strain relief
  • Shielded RJ45 metal connectors with integrated LED’s
  • Premium AX Series XLR connectors

Another Article:

SPECIFICATIONS

 ANALOG INPUTANALOG INPUTANALOG OUT-ANALOG OUT-AES3 I/OUSB I/O 2 IN 2
1CH2CHPUT 1CHPUT 2CH2IN2OUTOUT
GENERALConnectors1 XLR-F2 XLR-FRJ45RJ45RJ45RJ45
ELECTRICALRJ45RJ451 XLR-M2 XLR-M1 XLR-M, 1 XLR-FUSB 2.0 Type A
Power Consumption< 2 Watt
Power over Ethernet (Required)Class 1 IEEE 802.3af POE PD compliantPoE or USB
ANALOG / DIGITAL AUDIOMax Signal Level (Balanced)+24dBu / +4dBu / 0dBu+18dBu / +4dBu / 0dBu--
0dBV / -10dBV0dBV / -10dBV
Impedance20k Ohm balanced150 Ohm balanced110 Ohm-
10k Ohm unbalanced75 Ohm unbalancedbalanced
Frequency Response20Hz to 20 kHz (+/-0.5db)20Hz to 20 kHz (+/-0.5db)--
Dynamic Range> 100dB> 100dB--
Signal to Noise> 100dB> 100dB> 135dB-
Total Harmonic Distortion< 0.01% at +4dBu< 0.01% at +4dBu--
Channel SeparationN/A> 100 dBN/A> 100 dB -
Channel MatchingN/A< 0.25 dBN/A< 0.25 dB -
DANTE® AUDIOAsynchronous Sample Rate Conversion--Yes-
Sample Rate44.1 kHz, 48 kHz (default), and 96 kHz48 kHz
Bit Depth24 bits
Network Speed100 Mbps
Network InterfaceLatency from 1ms
Network TransportDante Audio over IP, AES67 RTP
CLIMATICProtection ClassIP40
Operating Temperature-5ºC to +60ºC (23ºF to +140ºF)
MECHANICALInsertion and Withdrawal Force≥10N - ≤35N
Weight136g (0.299lb)192g (0.423lb)136g (0.299lb)192g (0.423lb)192g (0.423lb)110g (0.243lb)
MATERIALSHousingPVC 60P Black

LED STATUS

 FUNCTIONLEFT LEDRIGHT LEDCOMMENT

OffOFFOFFNo Power
Device is bootingSolid GREENSolid RED
Slave with syncBlinking GREENSolid GREENNormal operation
LEFT LEDRIGHT LEDClock MasterBlinking GREENBlinking GREENNormal operation
Any runtime errorBlinking GREENBlinking REDNormal operation
IdentifyAlternating RED and GREENAlternating RED and GREENBlinking for 6 seconds (cycle every 0.5 seconds)
 Failsafe (bootloader)Blinking REDBlinking REDFailsafe, Corrupt Capability (red in DC)
Upgrade (bootloader)Blinking ORANGEBlinking ORANGEDevice is upgrading

Download Catalog: Amphenol Connector Catalog

Ref: Amphenol.com
