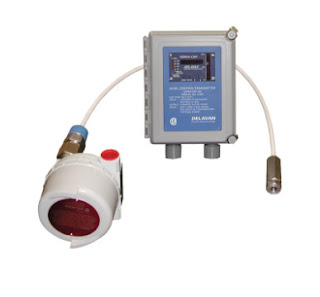

Delavan Versa-Cap Integral 450 or Remote 460

 Delavan Process Instrumentation manufactures products including solid and liquid point level and continuous level measurement. Delavan is a well-established company with a large customer base in a wide range of industries. Technologies include ultrasonic, capacitance, and microwave all of which complement and integrate with the L & J product offering.

Delavan has a proven track record of providing solutions to both bulk solids and liquids handling. Applications include wood chips, bailer, insulation products, coal handling paper/pulp production, petrochemical, and pharmaceuticals.



Versa-Cap is a versatile R.F. Capacitance Level Transmitter for liquids, slurries, and bulk solid applications.

The sensing probe is energized with an R.F. (radio frequency) signal of approximately 2 mHz. When the process material level changes, a change in capacitance occurs resulting in a very small change in frequency, which is converted to an accurate level reading for measurement and control.

Dela-Cal, Delavan’s unique auto-calibration feature, offered only in the microprocessor-based Versa-Cap system, allows the unit to be calibrated to the process material with only one level change, 2% of span or greater.

A keypad and an 8-character display ease calibration and allow the user to modify relay control, dead-band, fail-safe, and time delay settings.

Another Article: GF Signet Flow Sensor Capacitive Proximity Sensors MPM4893W, Microsensorcorp-Level Transmitter MPM436W, Microsensorcorp-Submersible Level Transmitter Bamo Turbidity, Temperature and Oxygen

Benefits

Intelligent R.F. Capacitance Level Transmitter

• Requires only one level change 2% or greater, for calibration
• Convenient analog and digital process display
• Keystroke set-up of analog, relay, Deadband, time-delay, and fail-safe settings
• Universal Power Supply Accepts 115 Volts, 230 Volts AC or 24 Volts DC
• Independently adjustable relay set-points with differential
• Microprocessor controlled pump sequencing

Specifications

• Supply Voltage: 115, 230 Volts AC @ 60 Hz 24 Volts DC
• Power Consumption: ≤15 volt-amperes
• Analog Display Type: 12-segment LED bar graph
• Digital Display Type: 8-digit 0.5" LED
• Output 4-20mA Optional: 600 ohms max. with 24 Volts DC power
• Other Available Analog Outputs: 0-10 Volts DC, 0-5 Volts DC
• Sensitivity: 0.5 pf or less
• Build-Up Tolerance: Up to 1000 micro mho's
• Optional Relays: 4 Form C DP/PT
• Time Delay: 0-250 seconds
• Fall-safe: Selectable High or Low
• Temperature Range: -40°F to +160°F
• Integral/Pre-Amp Enclosure: Die-cast aluminum with fused polyester paint finish
• Integral/Pre-Amp Enclosure Rating: NEMA 4, 5, 7, 9, 12
• Remote Enclosure (Model 460 only): Fiberglass with Plexi Window
• Remote Enclosure Rating (Model 460 only): NEMA 4X
• Interconnect Cable Length (Model 460): 1200' to Remote Unit
• Interconnect Cable Length (Model 450): 1 mile to PLC or Control

Download Datasheet: Delavan Versa-Cap Integral 450 or Remote 460
