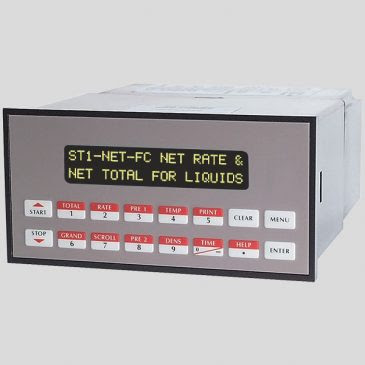

KEPmeter ST1-NET-FC (ST1NETFC)

Net Rate & Net Total Flow Computer for Liquid Applications

The ST1-NET-FC Flow Computer can monitor actual net flow and total of any liquid. (Common applications include boiler and diesel engine fuel consumption measurement) Flow alarms are provided via relays and datalogging is available via analog (4-20mA) and serial outputs.

Features

• Displays Supply, Return and Net Rate/Total
• Supports Pulse Producing Flowmeters
  Turbine, Positive Displacement, Coriolis
• Volume, Corrected Volume or Mass Equation
• Universal Viscosity Curve (UVC) and Strouhal/ Roshko Advanced Linearization Methods
• API2540 Equations for Petroleum Fluids
• User Entry of Fluid Properties(10 Selectable)
• Menu Selectable Hardware & Software Features
• Data Logging of Net Rate/Total
• Two Line LCD, OLED or VFD Display
• Isolated Pulse and Analog Outputs Standard
• RS-232 Port Standard, RS-485 Optional
• Auxiliary Energy Totalizer Available on Special Order
• Windows^TM Setup Software
• DDE Server & HMI Software Available
