PDFlo™ PDTX3 Flocorp

PDFlo™ PDTX3 Flocorp


Flow measurement provides a variety of application specific challenges because each has individual measurement requirements, restrictions, piping considerations, etc. FLO-CORP’s experienced team is second-to-none when providing expert flow advice on the correct meters for your application. Our team will help you navigate through the selection process if you are not sure which meter to use. Technologies offered include variable area, positive displacement, ultrasonic, magnetic, mass, and open channel flow meters.

Flow measurement sometimes relies on extreme accuracy despite changing viscosity conditions, and when it does, PDFlo positive displacement flow meters are the right choice. This reliability coupled with a large turndown range offers an affordable replacement for older turbine technology. Beyond their measurement ability, the solid construction and dynamic response of these meters causes them to stand the test of time, even in extreme process conditions.

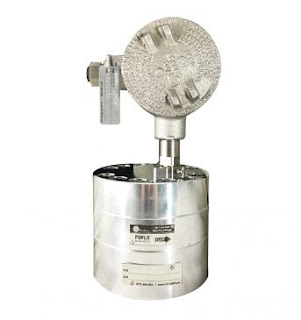

PDFlo™ PDTX3 Flocorp | Three Wire Flow Transmitter or Monitor

The PDFlo™ PDTX3 is a three-wire, meter mounted flow transmitter that is well-suited for a variety of remote monitoring applications. Microprocessor-based, the PDTX3 delivers fast and linear response. The operational frequency range is user-defined and accepts frequencies up to 5,000 Hz. Output signals are available in six types to meet preferred voltage, mA, and zero offset choices.

Features and Benefits

  • Meter mounted, microprocessor-based
  • Compact, rugged and easy-to-install
  • User-adjustable frequency span
  • DC supply voltage
  • Six output options (Factory Set)
  • Input frequency 5,000 Hz Max
  • 3-pin electrical plus connector or 1/2” NPT conduit connection

Specifications

Supply Voltage10-30 VDC*
Updated Time1/F + 25 msec
Linearity± 0.01% of reading
Input0.25 Hz to 5 KHz
Amplitude1Vp-p to 40 Vp-p
Output

0 -20 mA, 0-5 V, 0-10 V, 4-20mA,

1-5 V, 2-10 V



Enclosure Approvals

NEC Class I Groups C, D; Class II Groups E, F, G; UL Std. 886 - CSA Std. C22.2 No. 30

FLO-CORP has manufactured and designed flow, level and display systems since 1989 with one simple concept in mind; provide a high-quality product that will have unsurpassed value for our customers. FLO-CORP has decades of experience in flow, level, monitors and complete turn key systems. This experience encompasses both the design and manufacturing aspects of instrumentation as well as sales engineering and field support.

Ref: Floc-corp.com

Contact us : sales@wmablog.com or visit our E-Commerce

Download Datasheet: PDFlo™ PDTX3 Three-Wire Flow Transmitter or Monitor
