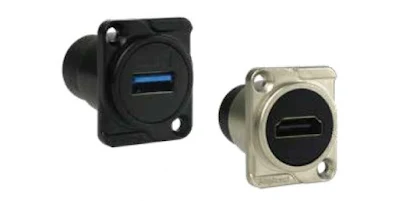

USB/HDMI Chassis Mount Data Connectors-Amphenol.The metal chassis mount connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All products are manufactured to the highest quality standards and will withstand the harshest environments.
Features:
- Data connectors
- Feedthrough adaptors
- USB 3 Type A
- HDMI receptacles
Options:
- Nickel or Black Shell Finish
Another Article: |
USB/HDMI TECHNICAL DATA
VALUE | |||
GENERAL CHARACTERISTICS | Type | USB 3.0 | HDMI 2.0 |
Termination | Thru-adaptor | ||
Max. Wire Gauge - Stranded Wire | AWG 14 - 2.5mm² | ||
Flammability rating of insulating plastics | UL94V-0 | ||
Solderability, complies with | IEC 68-2-20 | ||
Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | ||
ELECTRICAL CHARACTERISTICS | Current Carrying Capacity | 10A (Depends on Mating Connector) | |
Typical Contact Resistance | ≤10mΩ (Depends on Mating Connector) | ||
Insulation resistance (initial) | >2GΩ | ||
After Damp Heat Test | ≥ 10³ Meg Ω | ||
Dielectric Strength | 1500 V dc | ||
CLIMATIC CHARACTERISTICS | Protection Class | IP40 | |
Operating Temperature | -25ºC to +75ºC (-13ºF to +167ºF) | ||
MECHANICAL CHARACTERISTICS | Insertion and Withdrawal Force | ≥10N - ≤30N (depends on mating connector) | |
Cable O.D. | 3mm to 7mm (0.118” to 0.275”) | ||
Mechanical Operations | 500 mating cycles | ||
Weight | |||
- Cable Mount | 18g (0.039lb) | ||
- Panel Mount | 30g (0.066lb) | ||
MATERIALS | Connector Shell Material (Plugs) | Diecast Zinc Alloy EZDA No.3 | |
Connector Shell Finish | Satin Nickel or Coloured Polyester | ||
Insulators | PA66 | ||
Contacts | Brass Alloy | ||
Cable Bushing | Thermoplastic Polyurethane | ||
Plating | Gold Flash |
Download Catalog: Amphenol Connector Catalog
Ref: Amphenol.com
