Connector NJW Nanaboshi mepunyai carakter yang cukup baik dan ini sangat cocok sekali untuk yang mensyaratkan connector dengan sifat water proof dan tahan hingga 40 kPa water pressure.

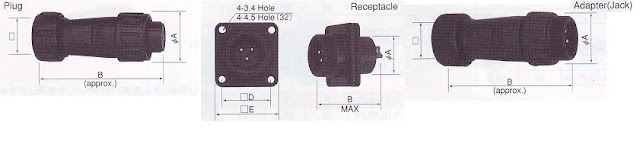

NJW Series Nanaboshi Connector
S Type | |||||||||||
Model | A | B | Model | A | B | C | D | Model | B | D | E |
NJW-163-PF | 22 | 58 | NJW-163-RM | 16 | 29.7 | 20 | 26 | NJW-163-AdM | 58 | 20 | 26 |
NJW-165-PF | 22 | 58 | NJW-165-RM | 16 | 29.7 | 20 | 26 | NJW-165-RAdM | 58 | 20 | 26 |
NJW-168-PF | 22 | 58 | NJW-168-RM | 16 | 29.7 | 20 | 26 | NJW-168-AdM | 58 | 20 | 26 |
NJW-202-PF | 26 | 60 | NJW-202-RM | 20 | 29.6 | 23 | 29 | NJW-202-AdM | 62 | 23 | 29 |
NJW-203-PF | 26 | 60 | NJW-203-RM | 20 | 29.6 | 23 | 29 | NJW-203-AdM | 62 | 23 | 29 |
NJW-204-PF | 26 | 60 | NJW-204-RM | 20 | 29.6 | 23 | 29 | NJW-204-AdM | 62 | 23 | 29 |
NJW-205-PF | 26 | 60 | NJW-205-RM | 20 | 29.6 | 23 | 29 | NJW-205-AdM | 62 | 23 | 29 |
NJW-207-PF | 26 | 60 | NJW-207-RM | 20 | 29.6 | 23 | 29 | NJW-207-AdM | 62 | 23 | 29 |
NJW-242-PF | 30 | 67 | NJW-242-RM | 24 | 30.5 | 26 | 32 | NJW-242-AdM | 67 | 26 | 32 |
NJW-243-PF | 30 | 67 | NJW-243-RM | 24 | 30.5 | 26 | 32 | NJW-243-AdM | 67 | 26 | 32 |
NJW-244-PF | 30 | 67 | NJW-244-RM | 24 | 30.5 | 26 | 32 | NJW-244-AdM | 67 | 26 | 32 |
NJW-245-PF | 30 | 67 | NJW-245-RM | 24 | 30.5 | 26 | 32 | NJW-245-AdM | 67 | 26 | 32 |
NJW-2410-PF | 30 | 67 | NJW-2410-RM | 24 | 30.5 | 26 | 32 | NJW-2410-AdM | 67 | 26 | 32 |
NJW-2414-PF | 30 | 67 | NJW-2414-RM | 24 | 30.5 | 26 | 32 | NJW-2414-AdM | 67 | 26 | 32 |
NJW-2416-PF | 30 | 67 | NJW-2416-RM | 24 | 30.5 | 26 | 32 | NJW-2416-AdM | 67 | 26 | 32 |
NJW-2421-PF | 30 | 67 | NJW-2421-RM | 24 | 30.5 | 26 | 32 | NJW-2421-AdM | 67 | 26 | 32 |
NJW-2424-PF | 30 | 67 | NJW-2424-RM | 24 | 30.5 | 26 | 32 | NJW-2424-AdM | 67 | 26 | 32 |
NJW-2816-PF | 34 | 72 | NJW-2816-RM | 28 | 28.5 | 29 | 35 | NJW-2816-AdM | 72 | 29 | 35 |
NJW-2824-PF | 34 | 72 | NJW-2824-RM | 28 | 28.5 | 29 | 35 | NJW-2824-AdM | 72 | 29 | 35 |
NJW-2831-PF | 34 | 72 | NJW-2831-RM | 28 | 28.5 | 29 | 35 | NJW-2831-AdM | 72 | 29 | 35 |
NJW-2837-PF | 34 | 72 | NJW-2837-RM | 28 | 28.5 | 29 | 35 | NJW-2837-AdM | 72 | 29 | 35 |
NJW-323-PF | 44 | 101 | NJW-323-RM | 32 | 39.1 | 36 | 45 | NJW-323-AdM | 101 | 36 | 45 |
NJW-324-PF | 44 | 101 | NJW-324-RM | 32 | 39.1 | 36 | 45 | NJW-324-AdM | 101 | 36 | 45 |
G Type | |||||||||||
Model | A | B | Model | A | B | C | D | Model | B | D | E |
NJW-163-PM | 22 | 58 | NJW-163-RF | 16 | 29.7 | 20 | 26 | NJW-163-AdF | 58 | 20 | 26 |
NJW-165-PM | 22 | 58 | NJW-165-RF | 16 | 29.7 | 20 | 26 | NJW-165-RAdF | 58 | 20 | 26 |
NJW-168-PM | 22 | 58 | NJW-168-RF | 16 | 29.7 | 20 | 26 | NJW-168-AdF | 58 | 20 | 26 |
NJW-202-PM | 26 | 60 | NJW-202-RF | 20 | 29.6 | 23 | 29 | NJW-202-AdF | 62 | 23 | 29 |
NJW-203-PM | 26 | 60 | NJW-203-RF | 20 | 29.6 | 23 | 29 | NJW-203-AdF | 62 | 23 | 29 |
NJW-204-PM | 26 | 60 | NJW-204-RF | 20 | 29.6 | 23 | 29 | NJW-204-AdF | 62 | 23 | 29 |
NJW-205-PM | 26 | 60 | NJW-205-RF | 20 | 29.6 | 23 | 29 | NJW-205-AdF | 62 | 23 | 29 |
NJW-207-PM | 26 | 60 | NJW-207-RF | 20 | 29.6 | 23 | 29 | NJW-207-AdF | 62 | 23 | 29 |
NJW-242-PM | 30 | 67 | NJW-242-RF | 24 | 30.5 | 26 | 32 | NJW-242-AdF | 67 | 26 | 32 |
NJW-243-PM | 30 | 67 | NJW-243-RF | 24 | 30.5 | 26 | 32 | NJW-243-AdF | 67 | 26 | 32 |
NJW-244-PM | 30 | 67 | NJW-244-RF | 24 | 30.5 | 26 | 32 | NJW-244-AdF | 67 | 26 | 32 |
NJW-245-PM | 30 | 67 | NJW-245-RF | 24 | 30.5 | 26 | 32 | NJW-245-AdF | 67 | 26 | 32 |
NJW-2410-PM | 30 | 67 | NJW-2410-RF | 24 | 30.5 | 26 | 32 | NJW-2410-AdF | 67 | 26 | 32 |
NJW-2414-PM | 30 | 67 | NJW-2414-RF | 24 | 30.5 | 26 | 32 | NJW-2414-AdF | 67 | 26 | 32 |
NJW-2416-PM | 30 | 67 | NJW-2416-RF | 24 | 30.5 | 26 | 32 | NJW-2416-AdF | 67 | 26 | 32 |
NJW-2421-PM | 30 | 67 | NJW-2421-RF | 24 | 30.5 | 26 | 32 | NJW-2421-AdF | 67 | 26 | 32 |
NJW-2424-PM | 30 | 67 | NJW-2424-RF | 24 | 30.5 | 26 | 32 | NJW-2424-AdF | 67 | 26 | 32 |
NJW-2816-PM | 34 | 72 | NJW-2816-RF | 28 | 28.5 | 29 | 35 | NJW-2816-AdF | 72 | 29 | 35 |
NJW-2824-PM | 34 | 72 | NJW-2824-RF | 28 | 28.5 | 29 | 35 | NJW-2824-AdF | 72 | 29 | 35 |
NJW-2831-PM | 34 | 72 | NJW-2831-RF | 28 | 28.5 | 29 | 35 | NJW-2831-AdF | 72 | 29 | 35 |
NJW-2837-PM | 34 | 72 | NJW-2837-RF | 28 | 28.5 | 29 | 35 | NJW-2837-AdF | 72 | 29 | 35 |
NJW-323-PM | 44 | 101 | NJW-323-RF | 32 | 39.1 | 36 | 45 | NJW-323-AdF | 101 | 36 | 45 |
NJW-324-PM | 44 | 101 | NJW-324-RF | 32 | 39.1 | 36 | 45 | NJW-324-AdF | 101 | 36 | 45 |
