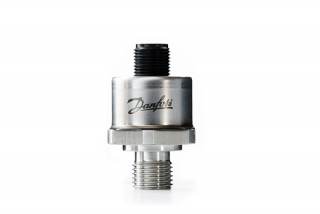

Danfoss DST P140 Pressure Transmitter for Water and Air Applications



DST P140 pressure transmitter with digital possibilities designed to provide unrivaled reliability and durability

The DST P140 pressure transmitter is designed to provide unrivalled reliability, durability, performance, and not least, digital possibilities in the water-pump and air-compressor markets.
 Danfoss DST P140 Pressure Transmitter for Water and Air Applications

The DST P140 pressure transmitter is designed to provide unrivalled reliability, durability, performance, and not least, digital possibilities in the water-pump and air-compressor markets. MEMS technology, stainless-steel design, and a hermetically sealed media interface ensure that the transmitter can withstand even the harshest application environments. And, thanks to its diagnostics features and scalable electronics platform, the DST P140 is capable of automatic sensor failure detection – and can also scale sensor performance to the specific application and adapt to applications faster with "test-to-failure" methods and documentation.

Features

  • Hermetically sealed media interface (all stainless steel, fully welded)
  • Compact and cost effective design for OEM applications
  • Superior shock and vibration resistance
  • High overload and burst pressure
  • Robust electronics platform for harsh electrical environments
  • Precision
    The DST P140 provides a +/- 2% Total Error Band across the application-focused temperature range. Custom calibration profiles can be adapted to suit application-specific requirements - supporting a more efficient  superheat control as a result.
  • Reliability
    Optimized product packaging of the MEMS sensor and the signal-conditioning electronics deliver excellent vibration resistance, thermal management properties and protection against moisture ingress.
  • Thorough testing
    A "test-to-failure" method is an important part of the Danfoss product-development process, providing increased product-design and specification insight. This method also allows for faster optimization and testing, improving time-to-market.
  • Future-proof
    The diagnostic capabilities of this transmitter will benefit customers today — saving on troubleshooting costs — and well into the future, as more and more products have integrated electronic capabilities.
  • Scalability
    The new and modular electronics platform enables customers to fine-tune the sensor performance specific to their application.

    Another Article:

Specifications

Technical Data

Performance

Accuracy @ 20 °C≤ ±0.5% FS
Total error band0 - 100 ºC: 2%
-40 - 0 ºC: 3%
Response time< 2 ms
Overload pressure4 × FS
Burst pressure5 × FS
Durability, P: 10-90% FS>10 mil. cycles

Electrical specifications

Nom. output signal (short-circuit protected)4 − 20 mA
Supply voltage [UB], polarity protected8 - 28 V
Supply voltage dependency≤ ±0.1% FS/10 V
Load [RL] (load connected to 0 V)RL ≤ (UB-8V)/0.022 A

Environmental conditions

Media temperature range-20 –110 °C - (0.34*ambient)
Ambient temperature range-40 – 85 °C
Storage temperature range−50 –150 °C
EMC - EmissionEN 61000-6-3
EMC Immunity up to 6 GHzEN 61000-6-2
Insulation resistance> 100 MΩ at 500 V
Vibration resistanceRandom10 grms, 5 Hz - 2 kHzIEC 60068-2-64
Shock resistanceShock500g / 1 msIEC 60068 - 2 - 27
Enclosure with mating connectorIP67

Mechanical characteristics

 Wetted partsAISI 304L
AISI 316L
Electrical connectionssee Electrical connection section
Weight (depending on pressure connection and electrical connection)



< 100 g

Download Datasheet : Danfoss DST P140 Pressure Transmitter for Water and Air Applications

Reference : danfoss.com
