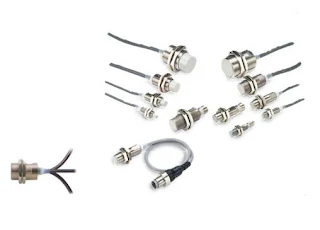

E2E-X DC 2-Wire Models, Omron-Standard Proximity Sensor
These Proximity Sensors use high-frequency oscillation. They resist heat, chemicals, and water better than Rectangular Sensors. They are available in both shielded and unshielded models. Proximity Sensors are available in models using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Models are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water.
Features and Benefits
- Standard Sensors for detecting ferrous
- A wide array of variations. Ideal for a variety of
- Models with different frequencies are also available to prevent mutual
- Superior environment resistance with standard cable made of oil-resistant PVC and sensing surface made of a material that resists cutting
- Useful to help prevent
- Cable protector provided as a standard feature
Ratings and Specifications
Size Shielded Item Model | M8 | M12 | M18 | M30 | ||||||
| Shielded | Unshielded | Shielded | Unshielded | Shielded | Unshielded | Shielded | Unshielded | |||
| E2E-X2D@ | E2E-X4MD@ | E2E-X3D@ | E2E-X8MD@ | E2E-X7D@ | E2E-X14MD@ | E2E-X10D@ | E2E-X20MD@ | |||
| Sensing distance | 2 mm ±10% | 4 mm ±10% | 3 mm ±10% | 8 mm ±10% | 7 mm ±10% | 14 mm ±10% | 10 mm ±10% | 20 mm ±10% | ||
| Set distance *1 | 0 to 1.6 mm | 0 to 3.2 mm | 0 to 2.4 mm | 0 to 6.4 mm | 0 to 5.6 mm | 0 to 11.2 mm | 0 to 8 mm | 0 to 16 mm | ||
| Differential travel | 15% max. of sensing distance | 10% max. of sensing distance | ||||||||
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on pages 17 and 18. | |||||||||
| Standard sensing object | Iron, 8 ´ 8 ´ 1 mm | Iron, 20 ´ 20 ´ 1 mm | Iron, 12 ´ 12 ´ 1 mm | Iron, 30 ´ 30 ´ 1 mm | Iron, 18 ´ 18 ´ 1 mm | Iron, 30 ´ 30 ´ 1 mm | Iron, 54 ´ 54 ´ 1 mm | |||
Response frequency *2 | 1.5 kHz | 1 kHz | 0.8 kHz | 0.5 kHz | 0.4 kHz | 0.1 kHz | ||||
| Power supply voltage (operating voltage range) | Standard Models: 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) US Models and Connector Models Used as UL-certified Models: 12 to 24 VDC, ripple (p-p): 10% max. (The operating voltage range is also the same.) *3 | |||||||||
| Leakage current | 0.8 mA max. | |||||||||
Control output | Load current | 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models | ||||||||
Residual voltage *4 |
3 V max. (Load current: 100 mA, Cable length: 2 m, M1J-T Models only: 5 V max.) | |||||||||
| Indicators | D1 Models: Operation indicator (red) and setting indicator (green) D2 Models: Operation indicator (red) | |||||||||
| Operation mode (with sensing object approaching) |
D1 Models: NO Refer to the timing charts under I/O Circuit Diagrams on page 20 for details. D2 Models: NC | |||||||||
| Diagnostic output delay | 0.3 to 1 s | |||||||||
| Protection circuits | Surge suppressor, Load short-circuit protection (for control and diagnostic output) | |||||||||
| Ambient temperature range | Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation) | |||||||||
| Ambient humidity range | Operating/storage: 35% to 95% (with no condensation) | |||||||||
| Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -25 to 70°C | ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C | ||||||||
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | |||||||||
| Insulation resistance | 50 MÙ min. (at 500 VDC) between current-carrying parts and case | |||||||||
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case | |||||||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||||||||
Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions | ||||||||
| Degree of protection | Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant Connector Models: IEC 60529 IP67 | |||||||||
| Connection method | Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wired Connector Models (Standard cable length: 0.3 m) | |||||||||
Weight (pack- ed state) | Pre-wired Models | Approx. 60 g | Approx. 70 g | Approx. 130 g | Approx. 175 g | |||||
| Pre-wired Connector Models |
--- |
Approx. 40 g |
Approx. 70 g |
Approx. 110 g | ||||||
| Connector Models | Approx. 15 g | Approx. 25 g | Approx. 40 g | Approx. 90 g | ||||||
Materi- als | Case | Stainless steel (SUS303) | Nickel-plated brass | |||||||
| Sensing sur- face | PBT | |||||||||
| Clamping nuts | Nickel-plated brass | |||||||||
| Toothed washer | Zinc-plated iron | |||||||||
| Accessories | Instruction manual | |||||||||
Download Catalog: Standard Proximity Sensor E2E
Ref: Omron.co.id
