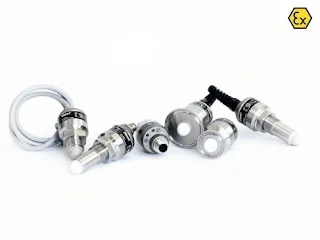

High-frequency limit level sensor RFLS–35, Dinel-Level and Flow Measurement

The high-frequency level sensor RFLS–35 is designed for industrial use for limit sensing of the level of liquid and paste-like media. The high-frequency level sensor may be a direct replacement of a vibrating level sensor or a capacity level sensor in case of more demanding applications. The media may be electrically conductive or non-conductive with any permittivity. It can be installed in metal or plastic tanks, pipes, filling tanks, sumps, etc.

It is mainly designed for mounting into the wall of a tank or pipe, in which the actual detection of the level will take place. The sensor works in the high-frequency band, enabling reliable detection of the level of media, and eliminating deposits or foam on the electrode. The sensor suppresses the influence of deposits of viscous media (ketchup, yogurt, pastes, syrups, jams and jellies, creams, soap) as well as electrically conductive adhesive products (detergents, alkalis, chemicals).

Likewise, it is possible to utilize it to differentiate a specific media from others - the "Medium window" function. E.g. it can differentiate oil from water and air, detect only beer foam and ignore beer and air, etc.

The sensor is made from a stainless steel housing at one end terminated by a sensing electrode, and terminated at the other and by an ending with a status indicator, control elements, and electrical connection.

There are next performances available: N – For normal atmospheres, Xi – Explosion-proof – intrinsically safe for hazardous (explosive) areas. and XiM – Explosion-proof – intrinsically safe for use in mines with methane or flammable dust presence danger (see technical specifications).

Features

• Designed for reliable limit sensing of the level height of wide-ranging fluids, mashed and pastelike materials
• Resistant to adhesion of viscous and sticky media
• Replacement of a vibrating level sensor
• Unique material type recognition function "Medium window“ (the sensor only senses the set medium and does not react to substances with a lower and higher permittivity)
• Direct mounting into tanks, vessels, sumps, pipes or funnels and containers
• Settings using the magnetic pen
• High stability at high sensitivity (possible to use for substances with εr ≥ 1.5)

Another Article: Flux Pump Kits for Acids Flux Pump Kits for Alkalis Flux Container Pumps MINIFLUX Flux Drum Pumps, Barrel Pumps and Container Pumps Flux Centrifugal Immersion Pumps

Specification

Supply voltage (variant RFLS-35N)	7 ... 34 V DC
Power consumption (variant RFLS-35N)	max. 5 mA DC
Max. switching current (PNP output)	300 mA
Residual voltage – ON state	max. 1,5 V
Coupling capacity (housing - power) / dielectric strength	5 nF / 500 V AC (50 Hz)
Ambient temperature range:	-40 ... +80 °C
Protection class	type RFLS-35_-_ _-C-_-_	IP 67
	type RFLS-35_-_ _-A(B, V, H, D)-_-_	IP 68
Cable (versions with cable outlets)	Variant (P, N)	PVC 3 x 0,5 mm2
	Variant (Xi, XiM)	PVC 2 x 0,75 mm2
Weight (without cable)	cca 0,15 kg
Power supply voltage	8 ... 9 V DC
Current consumption (disconnected/ connected) – NAMUR	≤ 1 mA / ≥ 2,2 mA
Max. internal values	Ui = 12 V DC; Ii = 15 mA; Pi = 45 mW; Ci = 15 nF; Li = 10 μH
Cables LC values	typic C < 150 pF/m
	typic L < 0,8 μH/m
